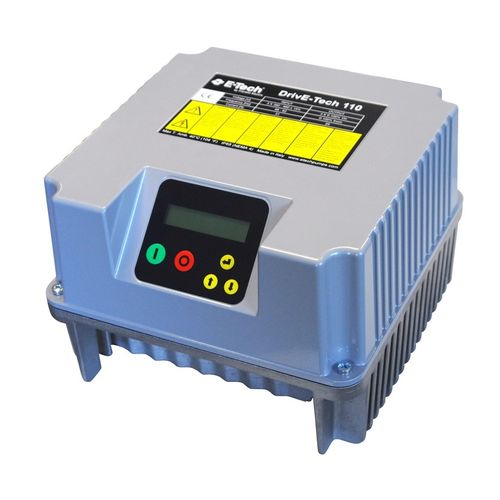

The new line of VFD DrivE-Tech has been designed and developed to optimize, control and protect pumping systems built with different kind of pumps like vertical multistage, centrifugal and submersible.

Applications
■ Water supply in domestic applications
■ Irrigation
■ Commercial
■ HVAC
■ Washing units

Features
■ Input voltage:
○ Single phase: 230 V ± 15 %
○ Three phase: 230 V or 400 V ± 15%
■ Ambient temperature at nominal current: max 40 °C (104 °F)
■ Protection degree:
○ Size 1 and 2: IP55
○ Size 3: IP54
■ Altitude at nominal current: max. 1,000 m

The installation of a DrivE-Tech allows the user to gain important benefits like:
■ Reduced energy consumption with remarkable cost saving
■ Longer life of pumping system
■ Greater reliability of the complete unit
■ DrivE-Tech controls are uniquely compact, and plugged with most of the pumps available in the market they can ensure steady operation conditions in terms of pressure, flow and temperature.

DrivE-Tech delivers motor protection and monitoring, such as:
■ Overload and dry running protection
■ Integrated soft start and soft stop functions, extending the life of the system and reducing peak variation
■ Input current and supply voltage
■ Recording running hours and login errors and alarms reported by the system
■ Controlling a second or third pump at constant speed DOL (DOL: Direct On Line)
■ Connecting to other DrivE-Tech to get combined operation

DrivE-Tech enclosure is entirely made of die-cast aluminum and is very sturdy, lightweight, easy to cool down and very compact in size.

Parameter Name	Parameter Value
Type	three-phase single-phase
Mounting	direct mounting
Applications	pump for industrial applications
Protection class	IP55 IP54
Other characteristics	compact programmable intelligent
Power (W)	100 - 100 0 - 0
Intensity (A)	7 - 9
