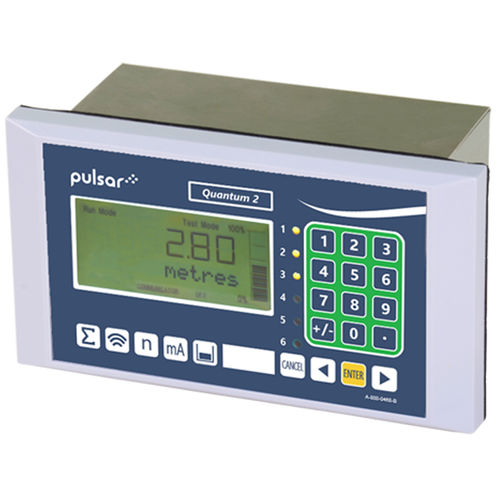

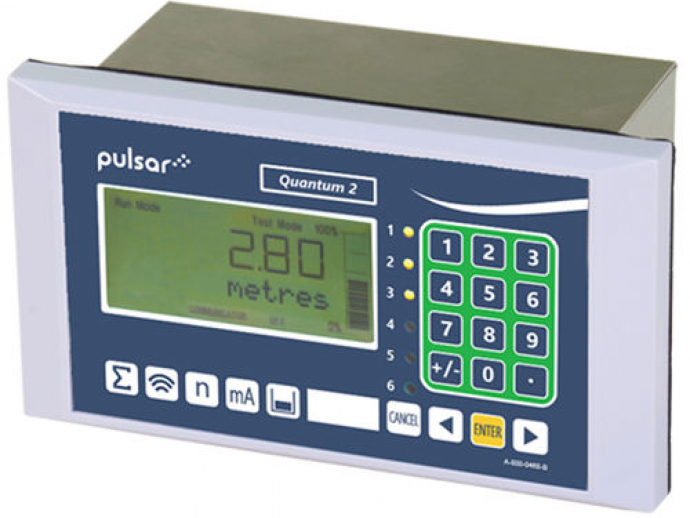

Quantum 2 by Pulsar Measurement is designed to be an intelligent and sophisticated pump controller. Featuring unique intelligent pumping, with 'time to spill' alarms and DATEM echo discrimination to provide solid performance and sophisticated level measurement. The unit has the ability to reset pumps automatically and can be used in those high-risk areas to enhance site management. Featuring a large onboard data logging facility, it enables the entire pump station process to be transparent.

Quantum 2 Intelligent Pump Controller features 10 relays (digital outputs) and 7 digital inputs, with the option to add RS485 digital communications, allowing for the status of the operation to be monitored and the unit to be programmed remotely.

FEATURES

Highly intelligent pump controllers
Time to spill calculation and warning
Automatically resets tripped pumps
Second mA output for pumped flowrate
Easy prompt led set up
RS485 Modbus and Profibus DP V0 and V1 options
10 relay outputs and 7 digital inputs
Pump efficiency alarm function
Peak power tariff avoidance
Can also be configured using Pulsar's PC Suite software

Parameter Name	Parameter Value
Other characteristics	with alarm function ultrasonic for pump management with pump auto-reset
