Category - MERKURION® Controller

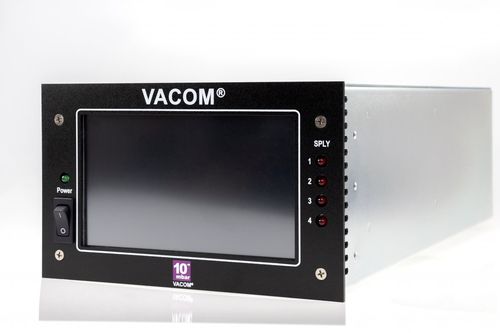

Item description - Controller for Ion Getter Pumps, 4 independent high voltage outputs at each +3000 .. +7000 V (positive polarity), max. 125 mA and max. 125 W with high voltage connector 10 kV SHV (SAFECONN). Wide VGA Touchscreen Color LCD display and interfaces RS232, RS485, Ethernet, analog out, and setpoints (4 Relay, 4 TTL)Dimensions: 3U high, 1/2 Rack wide, 438 mm depth, Weight: 9.5 kg.
Max. output current - 125 mA
Article no. - 376904
Length - 220 mm
Length 2 - 133 mm
Length 3 - 471 mm
Set points TTL - 4
Set points Relais - 4
Current resolution - 1 nA
Max. output voltage - 7000 V
Max. output power - 125 W
HV connector - SHV
Purity class - PCS
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Other characteristics |
for stand-alone applications
|
