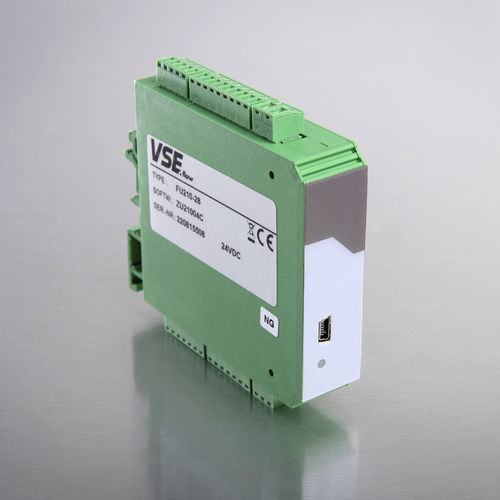

The FU210-28 is the functionally compatible and more powerful successor unit of our proven signal converter FU252-28.

With the display units from VSE, the output pulses of the connected flowmeters are
evaluated precisely and highly dynamically. The multi-functional units allow accurate
monitoring and evaluation of the flow measured values, as well as the volume flowed
through. Calculations such as ratio, sum or difference of two flow measuring systems are
also realized with the units.

Just like the converters, the display units also have the additional functions of linearisation,
filter and limit values to cover any customer-specific requirement. Additional analogue
outputs enable precise control or the control of external evaluation units.

Advantages
Modes of operation frequency measurement and/or pulse counting
Calculations A/B, A+B, A-B
Input frequency up to 250 kHz
Additional analogue outputs with short conversion times
14-16 bit analogue output, configurable for voltage or current operation (±10 V, 0/4 ... 20 mA)
Linearisation with 16-24 interpolation points
Switchable filter functions
Control inputs and fast control outputs (limit values)
Auxiliary voltage output 5 and 24 VDC for encoder supply
Graphic display with different colour variants or LED display
(6 decades)

Parameter Name	Parameter Value
Signal type	analog universal pulse HTL RS-232
Associated function	indicator
Other characteristics	RS485
