For digital flow monitoring in oil circulation systems

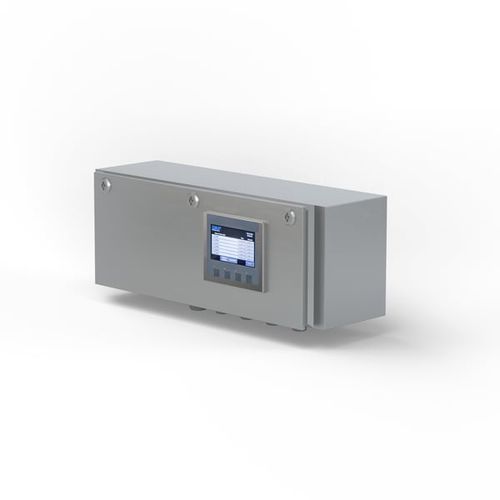

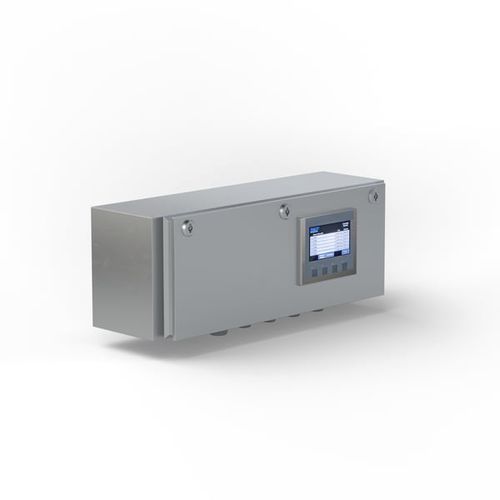

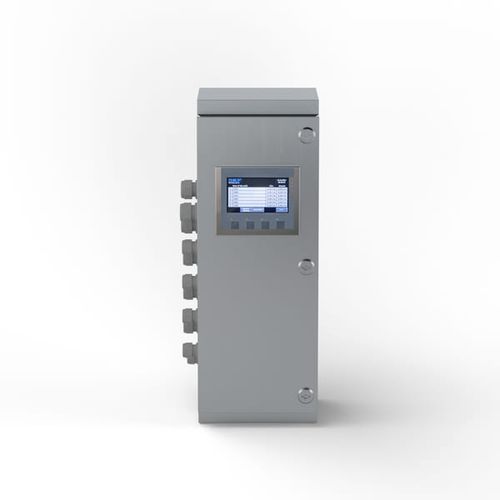

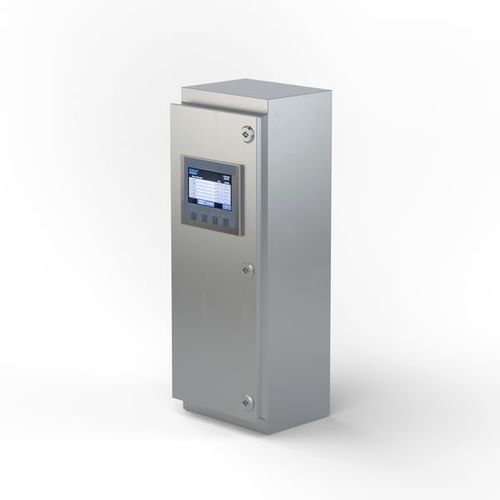

IPM is a digital pulse metering panel to monitor flow rates in oil circulation systems. It can be operated combined with flow meters or flow limiters. The intuitive IPM touch display allows field configuration and individual parameters for up to 45 lubrication points. Each point is monitored against nominal flow value but can also have a reduced set point for startup period preventing unnecessary alarms. Besides informative local alarm messages, the panel offers five relay outputs with 15 different alarm combinations. Thanks to its modular design, IPM is optionally available with customized ethernet connections. IPM offers an excellent upgrade possibility for existing oil flow monitoring systems having pulse feed or static signals.
Features and benefits
Easy wiring and installation
Adjustable system start-up mode
Upper-level process control connectivity
Intuitive digital touch display with parameter set-up
Real-time oil flow rates with alarm functions
Excellent upgrade for existing pulse meter systems
Compatible with SMD, SMB, SMBM and SFZM flow metering devices
