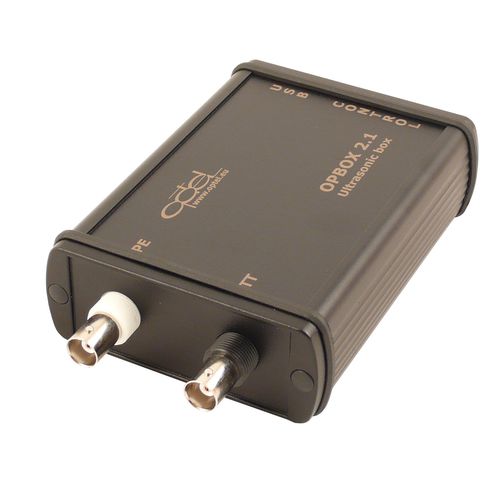

OPBOX with standard software is able to do all types of inspections and measurements: flaw detection in welds and materials, scanning of objects, testing composite materials, forged and moulded pieces, many UT inspections, measurements of properties of materials, including fluids and gases.
Typical applications: UT measurements with pulse technique, Measurement of thicknesses also at high temperatures, Measurements of properties of materials, including fluids and gases
- A-Scan {RF, Abs, Pos and Neg}, B-Scan {Mulitcolor map},
- A-Scan freeze and saving (protocol)
- Connection to all systems running on Microsoft (Microsoft Hardware Certification)
- High gain up to +89 dB
- Switchable analogue filters
- Support fast TGC and DAC
- 2 signal inputs PE and TT
- 100 MHz sampling frequency
- PRF up to 10 000
- HW data processing: RF, Absolute; 3 peak detectors; 3 level comparators: Level, Rising, Falling, Transition.
- Pulser: Pulse Voltage 0V to 360V, Charging Time adjustable from 0 to 3.1us in 0.1us steps
- Various triggering mode
- BNC or Lemo analogue connectors
- L 100 mm W 82 mm H 32 mm
- DB15: I/O lines 6 Inputs and 6 Outputs
- USB-2.0 High Speed (480 MBps)
- Power supply: USB connector <500 mA
- 310 g

We are delivering a standard version of the software (for any Microsoft Windows up to 10 x64 with Microsoft Hardware certification report Approved) and for special needs: SDK with ready to use examples for LabView, MATLAB x64, C++ wrapper for dll, Python and Linux., and also low-level description of how to control our devices directly from any USB tools

Parameter Name	Parameter Value
Other characteristics	pulse velocity pulse echo
