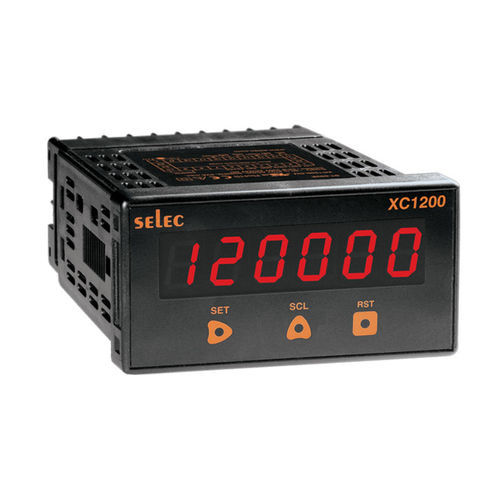

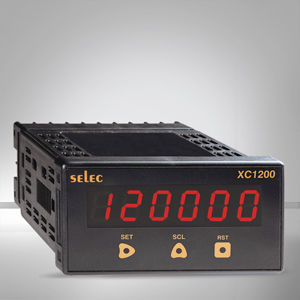

6 digits Counter, 5 digits RPM Indicator
LED Indications : Relay1, Relay2
Dual Set point, Programmable Input Scaling
Up, Down, Quadrature & Bi-directional Counting Direction

Specifications
Display Type - LED
Display Configuration - 6 Digits Counter, 5 Digits RPM Indicator
Relay Contact - 2 C/O DPDT
Range - Total: Least Count: 0.0001 , 0.001, 0.01, 0.1 Rate: 4 to 99999
Operating Modes - On Delay, Interval , Auto reset, Time pulse repeat
Reset - Front (user selectable), Remote
Counting Direction - Up, Down, Bi-directional, Quadrature
Features - Memory Retention, 2 Set Points, Programmable Input Scaling
Sensor type - NPN, PNP, potential free contacts, encoder
Input Speed - a) 0 to 30Hz b) 0 to 2.5kHz c) 0 to 5kHz
Supply Voltage - 90 to 270V AC / DC
Size - 48 x 96mm
Mounting Type - Panel mount
Certification - CE

Parameter Name	Parameter Value
Type	pulse time binary
Display	digital
Technology	electronic
Other characteristics	panel-mount programmable preselection contact
