Highlights
• - Industrial Grade Dual Channel 16-Bit Counter
• - Minimum Detectable Pulse Width of 100 msec
• - Highly Accurate Pulse Counting with Low Latency Transmission
• - Adjustable Counting Threshold for Transmission (factory configurable)
• - 2 Mile Line-of-Sight Range with On-Board Antenna
• - Superior LOS Range of up to 28 Miles with High-Gain Antennas
• - Interface to Raspberry Pi, Microsoft® Azure®, Arduino and More
• - Example Software for Visual Studio and LabVIEW®
• - Wireless Mesh Networking using DigiMesh®
• - Open Communication Protocol for Easy Software Integration
• - Small 3″ x 3″ Form Factor Wireless 16-Bit Counter
• - Power-Efficient Sleep Mode, Up to 10 Year Battery Life
o - User Configurable Sleep duration
o - Up to 500,000 Transmissions from 2 AA Batteries
• - Includes Battery Level with Every Transmission
• - Validates and Retries Lost Communication Packets

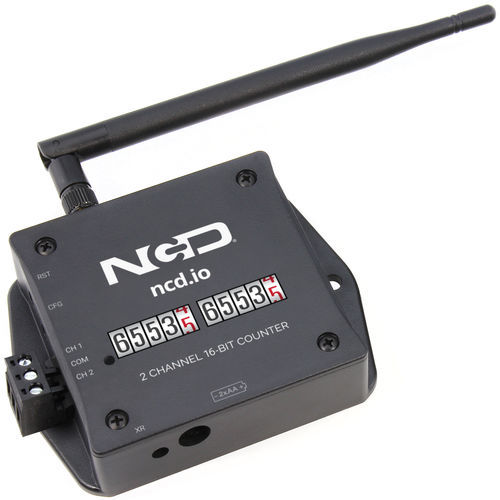

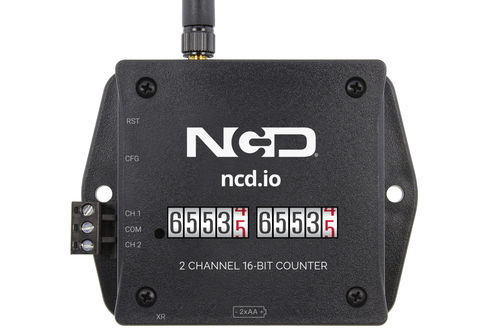

IoT Long Range Wireless Two Channel Counter Transmitter
Introducing NCD’s Long Range IoT Wireless Two Channel Counter, boasting up to a 2 Mile range using a wireless mesh networking architecture. This counter incorporates two low latency 16-bit counters that never miss a pulse, even during sleep. If a pulse arrives at either input, it wakes up and adds to the input count. If the number of pulses counted is a multiple of Counting Threshold, then it sends a packets with the total number of pulses detected on both channels. Once a pulse is counted, this device goes back to sleep.

Parameter Name	Parameter Value
Type	pulse
Display	analog
Applications	industrial
Communication	wireless IoT
