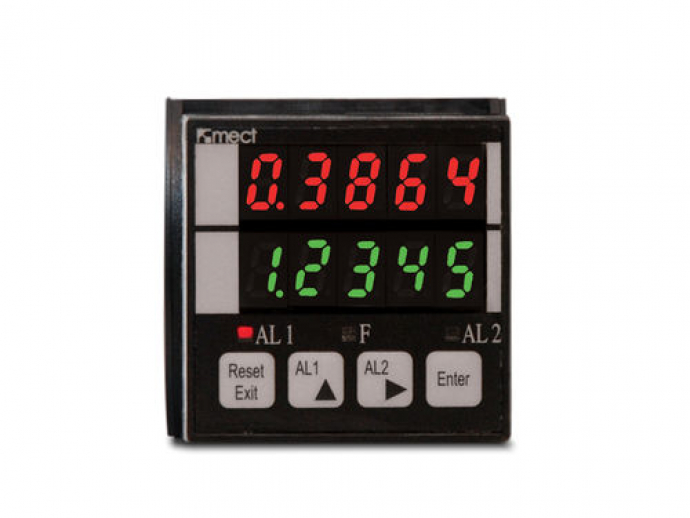

The MPCT20 M1 model is a programmable instrument with uni-directinal pulse counter, rpm meter, frequency meter, hourly production meter or timer.
The instrument offers the following functions:
- double display: upper display (red) for counting and lower diplay (green) for set point or total counting
- memorized count after power down
- 5 digit counters
- input from encoders - NPN or PNP sensors or mechanical contact
- 2 relay output ( SR2) or 1 exchange relay output (SR1F)
- possibility of "up" or "down" counting
- possibility of visualisation the partial or total counting (counter only)
- pre-set ’down’ counting (counter and timer)
- divisor programmable from 1 to 65000
- multiplier programmable from 1 to 65000
- 8 programmable scales in timer mode
- in timer mode it is possible to select a stop watch function (hold and reset) or a chronometer (start, stop, reset)
- alarms in RPM, frequency meter and hourly production mode: threshold or windows
- alarms in counter or timer mode: threshold, threshold with stop counting or automatic cycle

Parameter Name	Parameter Value
Type	pulse binary cycle
Display	digital
Technology	mechanical
Applications	industrial
Other characteristics	programmable automatic
