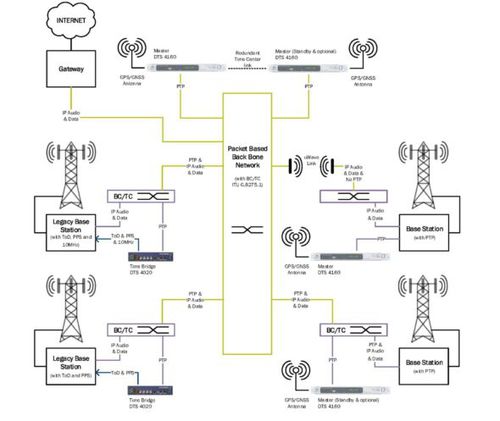

The DTS 4020.timebridge serves as an interface between the IEEE1588 protocol (multicast slave clock / PTP slave) supplied across a packet network to traditional serial Time-of-Day (ToD), 1PPS, 10MHz and IRIG B signals or NTP client in a PTP / NTP network.
Technical features

2 completely separated LAN ports
(2x RJ45):

synchronize to PTP on 1 port
· 1- and 2-step slave
· different profiles and domains
· multicast/unicast
· IPv4/IPv6/Layer 2
provide NTP on 2 ports
(typically >10’000 requests/s on
both 2 ports combined

Multi-purpose device due to the different
time code and frequency outputs:

1x Time of Day
2x pulse/frequency/IRIG output
1x IRIG-B/10MHz sinus

Parameter Name	Parameter Value
Options	synchronized PTP IEEE 1588 slave
