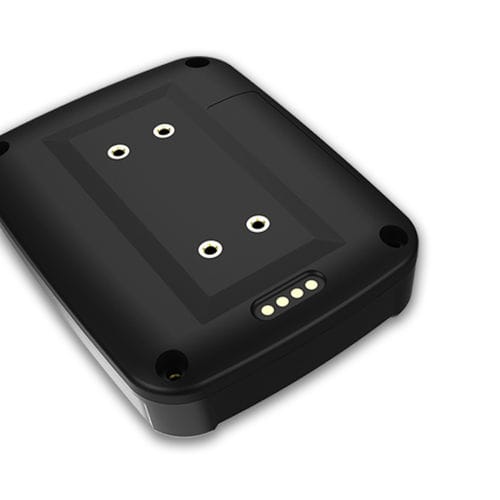

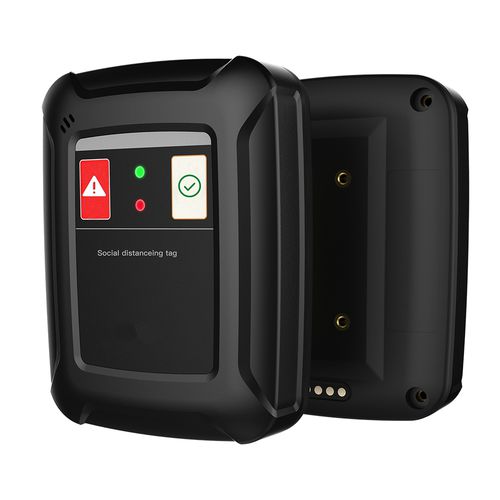

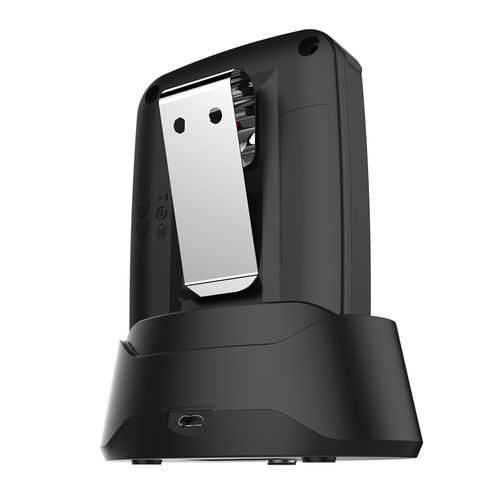

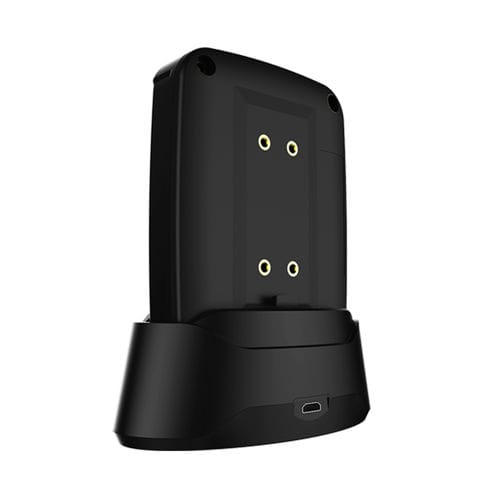

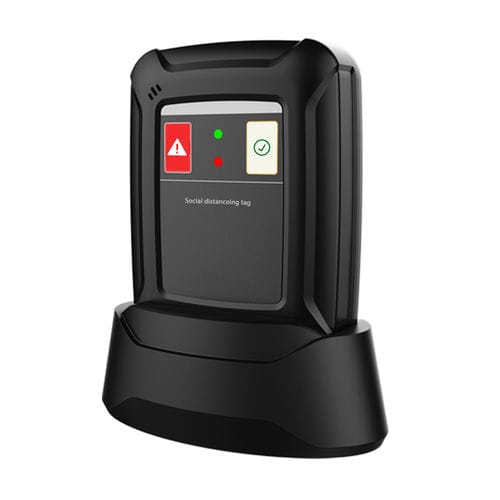

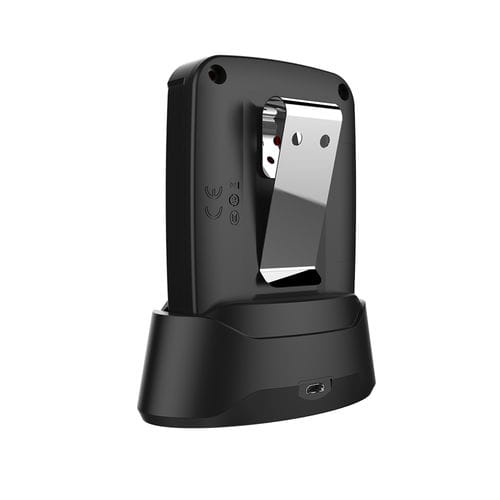

UWB Tag Specifications

Ranging accuracy: 10cm

Dimensions: 78×60×21 mm

Charge/Power Interface: pogo pin-4

Charging time: ≤ 2h

Maximum battery life: ≥14 hours

Battery type: lithium polymer battery

Battery level: 1000mAh

Working temperature: -20 °C ~ 60 °C

Storage temperature: -20 °C ~ 85 °C

Working humidity: 0~95% non-condensing

Protection level: IP67



System Overview:

Provide a proactive system to support and
condition workers to comply with social distancing

Limit the number of Subject 1s but also be able to
identify them automatically when necessary

Passively collect worker interactions and duration
to automate and digitize contact tracing efforts

Provide the information needed to guide
pandemic protocols at essential facilities

Help businesses get back to normal operations
with an easy-to-implement, user-friendly solution

Arm businesses with a solution that supports
measures to limit the spread of infection

Parameter Name	Parameter Value
Applications	social distancing
Other characteristics	proximity
