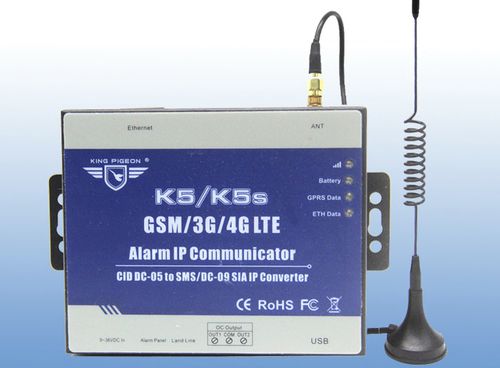

GSM 3G 4G Ethernet Communitcator (Ademco Contact ID to SIA IP Converter)
Model no：K5S

The K5S GSM 3G 4G Ethernet Communicator is special for converting the PSTN Ademco Contact ID Control panel to SMS alerter and SIA IP over GPRS network.

Ø Support three alternative communication modes: GPRS,SMS 3G 4G Ethernet and PSTN;

Ø Compatible with control panels from any manufacturer which has PSTN telephone communicator and Ademco Contact ID protocol;

Ø Plug and play design, easy to use;

Ø When PSTN telephone line disconnect, automatically convert Ademco Contact ID codes to SIA IP Protocol and transfer via GPRS to CMS;

Ø Supports transfer data by both of PSTN or GPRS;

Ø Messages are transmitted in SIA IP protocol via GPRS to the main or backup IP addresses or DNS server.

Ø If GRPS connection is lost, will alert by SMS;

Ø Alarm, Event, Trouble messages are sent by SMS messages to up to 5users;

Ø Access to configuration is secured with password;

Ø Quick and easy configuration and upgrade firmware via USB;

Ø Remote configuration, control from CMS or SMS;

Ø Backup rechargeable battery, while external power lost will alert by SMS;

Ø Metal casing for additional main board protection.

Ø 850/900/1800/1900Mhz GSM GPRS Module inbuit, 3G module is optional.

Parameter Name	Parameter Value
Type	protocol
Bus	Ethernet/IP
