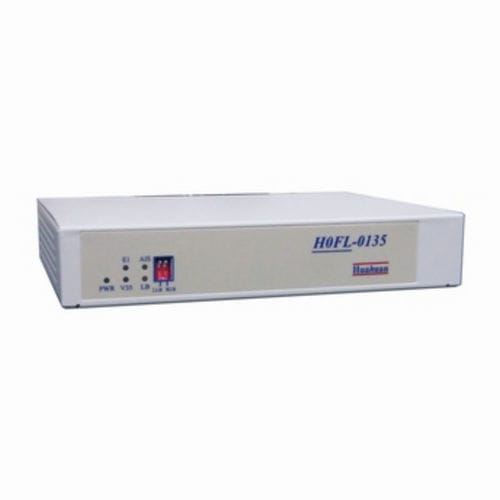

H0FL-0135 V.35/E1 converter transports V.35 data via E1 network. It's widely used for routerinter connection and DDN accessing as well as remote LAN connection. It can provide best solution with simplicity, efficiency cost-effectiveness and high reliability for data communication platform.

Features

-Excellent performance in jitter limit and transmission features of E1 port.Excel standard requirements.
-E1 channels comply with ITU-T G .703, with loop back test function.
-Several interface rates （N×64K，1≤N≤32）and modes （DTE and DCE）aresupported. Several clock selections (DCE internal clock, DCE E1 line clock andDTE V.35 interface clock), the 16th time slot for signaling selectable. Support framed and unframed work mode.
-Fit for connections of data end equipment such as router with V.35 port through E1 channels, for the V35 service via E1 channels extension in DDN network.
-Alarm indications ,equipment and line performance supervision are provided
-Work with the module 0135 inserted in H0FL-Pin local side, Network consolesoftware can be provided to fulfill remote control.

Parameter Name	Parameter Value
Type	protocol
Bus	Ethernet, RS-232
Other characteristics	compact
