TI SitaraTM AM3352 ARM® CortexTM-A8 1GHz CPU
19.2 ~ 28.8V, Isolated Power
Isolated Communication Port
PCB conformal coating protection
-20°C~70°C wide operating temperature
Metal chassis, DIN-rail mounting
Powered by Novakon Software iM-Connect®

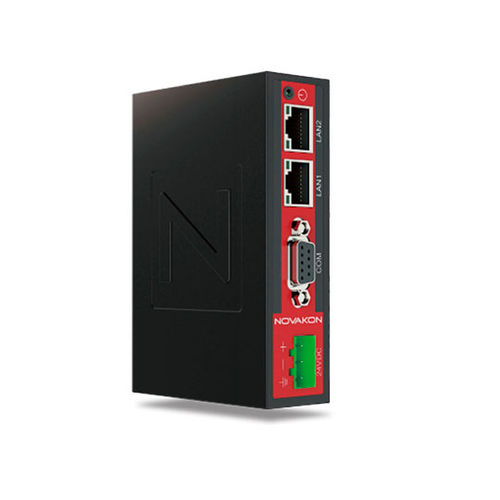

The GW-01 is compact DIN-rail protocol conversion gateway equipped with ARM® CortexTM-A8 (1GHz) CPU, offering both 512MB SDRAM/4GB eMMC or 1GB SDRAM/8GB eMMC as optional configurations, dual ethernet ports and COM port (DB9 x 1 for RS-232 x 1 ; RS-422/485 x 1) make it flexible for various device connectivity. System is designed with full power and communication port isolation, PCB conformal coating that offers extra protection against humidity, dust and corrosion. Its wide temperature design for operation between -20°C~70°C, offering high reliability and endurance under harsh environment.

GW-01 is powered by iM-Connect®, a web-based and simple-to-use programming software developed by NOVAKON Co., Ltd., it provides a variety of industrial communication protocols, PLC drivers, and IIOT cloud connections as a simple but reliable protocol conversion and data acquisition platform for the "Connected" industries.

Parameter Name	Parameter Value
Type	communication industrial IoT telemetry
Network	USB Ethernet TCP RS-232 RS422/RS485 CANopen LAN Modbus Modbus RTU Modbus TCP Modbus TCP/IP CANbus BACnet
Other characteristics	DIN rail compact PLC for machine data management for condition monitoring VPN protocol converter 2 port multi-protocol for remote access Linux OPC UA server for energy management for predictive maintenance multi-function bridge
