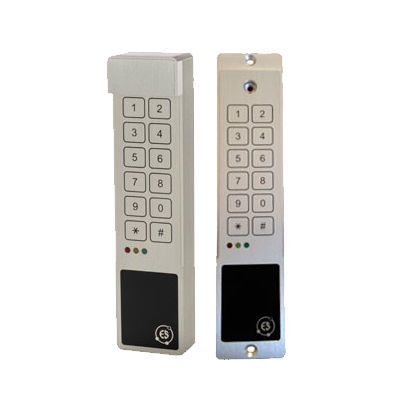

Touch Metal Piezo Keypad/Reader for use with 4, 8, and 26Bit Wiegand access control systems with 13.56MHz HID RFID cards. Utilizing HID iClass SE technology, the ASH Series can read iClass, DESFire, and MiFare formats. Available in two configurations, single gang for box or surface mounting and mullion mount that fit standard door frames (1.875” x 7.875”). Metal housings are machined, one piece construction with non-removable anodized graphics, completely potted, with vandal proof mounting. Connection is via industry standard data cable.
•Field configurable: 4, 8 and 26 Bit Wiegand
•Proximity format: 13.56MHz HID
•Technology: iClass SE
•Proven reliability: Tested for 50,000,000 cycles
•Weatherproof: For use in harshest outdoor conditions
•Touch Activated: Operable with gloves, tools, etc.
•Sterilizable: Wash down proof up to 100 BAR
•Vandal Proof: For use in high traffic and abusive areas
•Field configurable: 4, 8 and 26 Bit Wiegand
•Proximity format: 13.56MHz HID
•Technology: iClass SE
•Proven reliability: Tested for 50,000,000 cycles
•Weatherproof: For use in harshest outdoor conditions
•Touch Activated: Operable with gloves, tools, etc.
•Sterilizable: Wash down proof up to 100 BAR
•Vandal Proof: For use in high traffic and abusive areas
•Housing Materials: Aluminum 6061 T651
•Housing Method: Machined one piece construction
•Actuating Force: 3-5 Newton
•Connection: Cable
•Actuating Travel: 0.002 mm
•Shock Protection: IK 06

Parameter Name	Parameter Value
Function	protection surface access
Product applications	door
