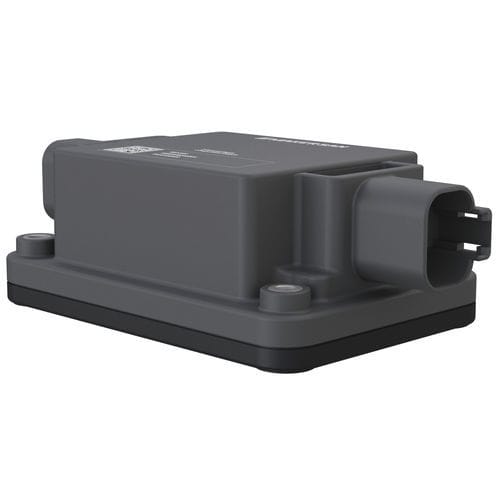

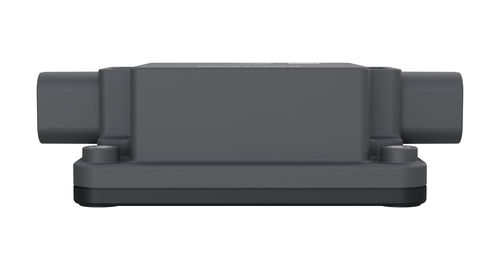

Valve Controller

SAE J1939 or CANopen interface
GF 30 % Polyamid
8(12)~32 VDC
80mA typ. ( no load )
-40°C … +80°C
IP67
2×4 Pin Deutsch DT ConnectorUser Configuration or Custom Software
USB to CAN Interface for device Configuration
Up to 2 Digital Inputs
Up to 2 Frequency Inputs
Up to 2 Current Inputs
Up to 2 Resistive Inputs
Up to 2 Software Selectable Inputs (Voltage / Current / Resistive / Frequency)
Up to 4 Proportional Outputs (max. 2.2 A/ch, max. 500Hz PWM, current sense feedback)

Parameter Name	Parameter Value
Options	proportional digital
