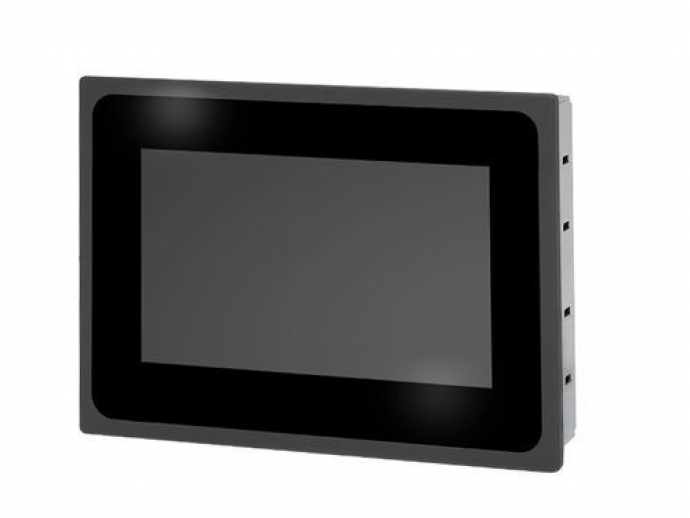

Built-in panel for visualization, operation and monitoring
Data exchange via CAN

Performance Data
Internal program and data memory -
8 MB

Internal storage device -
8 MB Flash

Interfaces -
1x CAN bus (maximal datarate 1 Mbit/s)

Supply voltage -
+24 V DC (+18-30 V DC)

Bus Connection -
Yes

Features -
Controller: Cortex-M3

Display

Ratio -
7:4

Mechanical Features
Dimensions -
132 x 94 x 35.5 mm (W x H x D)

Material -
front plate: 0.7 mm glass and 3 mm black aluminum frame, anodized

Weight -
300 g

Article Number/Certification
Article number -
01-230-412

Parameter Name	Parameter Value
Interface	projected capacitive touchscreen
Mounting	panel-mount vehicle-mount
Resolution	480 x 272
Other characteristics	TFT LCD compact widescreen CAN BUS IP65 robust
Applications	PLC visualization
