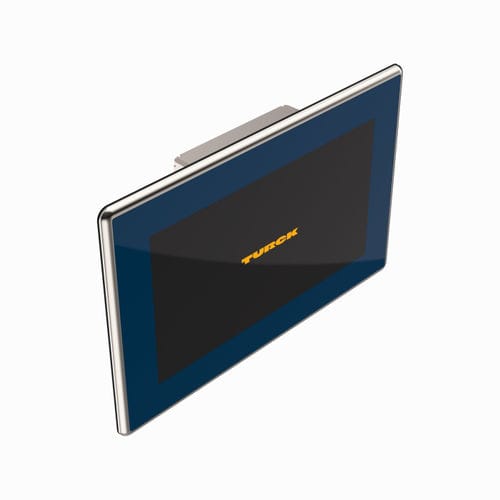

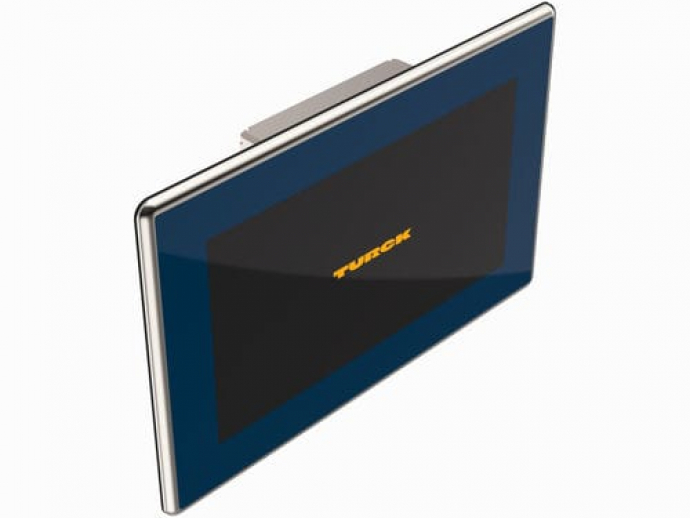

TX700 HMI/PLC Series

15” Display for F&B — CODESYS V3 PLC with TARGET and WEB VISU

High-Quality Metal Housing and Glass Front with a Capacitive Touch

15" TFT wide screen color display
LED backlight
1366x768 pixel resolution
16 M colors
Capacitive touchscreen with glass front and polyester coating
Stainless steel frame and food-grade seal
IP69 degree of protection, high-pressure watertight up to 80 °C
Acid- and chemical-resistant
1 RJ45 Ethernet port with 10/100/1000 Mbit
2 RJ45 Ethernet ports with 10/100 Mbit
1 serial interface (RS232, RS485, RS422)
2 USB host ports
1 SD card slot

Technical Data
Product series - TX700
Device type - Cloud Gateway, Industrial Control
Protection class - IP69 front, IP20 rear
Interface - RS232, RS485, 3 × RJ45
Radio interface - Optional erweiterbar
Fieldbus master - PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT
Fieldbus slave - Modbus TCP, Modbus RTU
Programming - CODESYS V3

Parameter Name	Parameter Value
Interface	projected capacitive touchscreen
Mounting	panel-mount
Other characteristics	stainless steel Ethernet USB RS232 Modbus CANopen Ethernet/IP
Applications	display industrial PLC
