Flagship Model of HMI for extensive use of information

How can you fully utilize only the information you need from scattered big data? SP5000 Series provides Smart Portal, a window that optimally displays information in response to a demand for increasingly sophisticated information utilization as a new solution.

Smart Portal is a gateway terminal that securely connects the two different networks of a factory, the equipment and devices on the manufacturing floor and the production control office

In production sites, HMIs and IPCs have long been used as operation panels. HMIs provide visualized information of devices and equipment. IPCs have been used to processed large amount of data even in tough environments. Pro-face offers Smart Portal, which is a new class of interface beyond HMIs and IPCs. The Smart Portal securely connects different networks, and utilizes the big data both in the factory and the office

Information technology (IT) has upgraded the computers and telecommunications equipment in the industrial automation field, and has generated massive data in production sites. In addition, Smart Mobile Devices such as smartphones and tablets have brought accessibility of data and Cloud services have brought diversity for applications which use this data. Pro-face has developed SP5000 Series as the first Smart Portal product for satisfying customers needs utilizing large volumes of data and connecting securely both upper networks (office) and lower networks (factory)

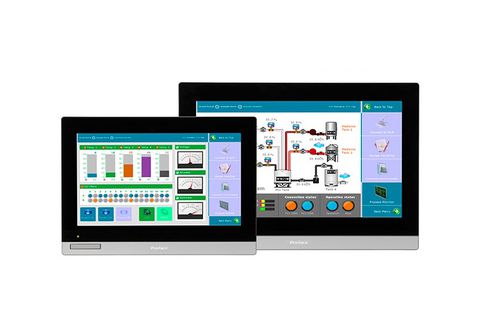

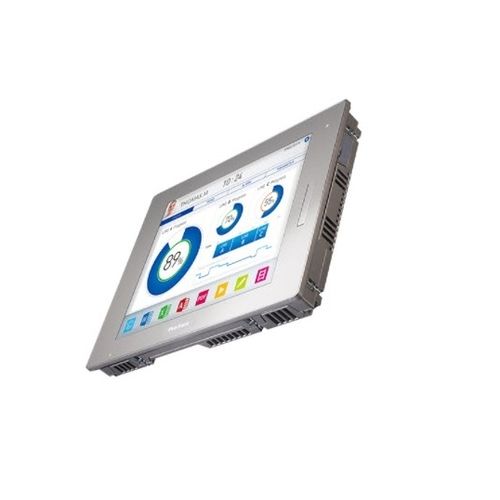

SP5000 Series is an interface terminal that can be integrated as a display unit on an operation panel. Equipped with 2 Ethernet ports, SP5000 Series can easily and securely create segmented networks

Parameter Name	Parameter Value
Interface	projected capacitive touchscreen
Mounting	panel-mount
Resolution	800 x 480 1024 x 768 1280 x 800 1366 x 768 800 x 600
Other characteristics	TFT LCD RS232 RS422/RS485
Applications	industrial information
Screen size (mm)	7 - 19
