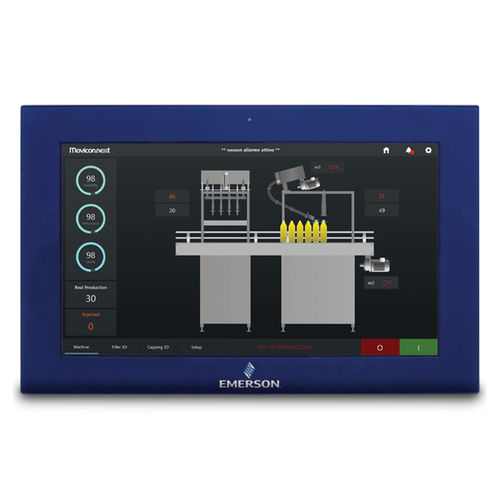

Next generation visualization with Movicon WebHMI at the core of the RXi HMI, ready to operate out of the box
IIOT Ready with OPC UA and MQTT protocols, robust toolsets and graphic packages, and tools for analysis
Easily swap between screen size options of 12" to 24" in a widescreen format (12" and 15" models also offer outdoor Sunlight Readable (SLR) screens)
Effectively operate in temperatures as high as 65 degrees C and as low as -20 degrees C with the capability to operate indoors or outdoors
IP66 rated screens that protect against dust, moisture,and even direct water jets

Specifications

Touch Screen
Projected Capacitive Touch (PCT/PCAP), Multi-touch (10-point)

Status Indicator
Tri-color LED

Operating System
Windows 10 IOT Enterprise LTSC

Certifications
UL, CE, FCC, RoHS, ATEX, IECEx

Marine
ABS, BV, DNV GL, LR

UL Listed US/CAN HazLoc
Class 1 Division 2, Class 2 Division 2, Class 3 Division 1

RAM
4GB

SSD
128GB

Parameter Name	Parameter Value
Interface	projected capacitive touchscreen
Mounting	panel-mount wall-mount VESA mounting
Resolution	1920 x 1080
Other characteristics	widescreen Ethernet 1 x RJ45 CAN IIOT robust IP66 ATEX
Applications	visualization
