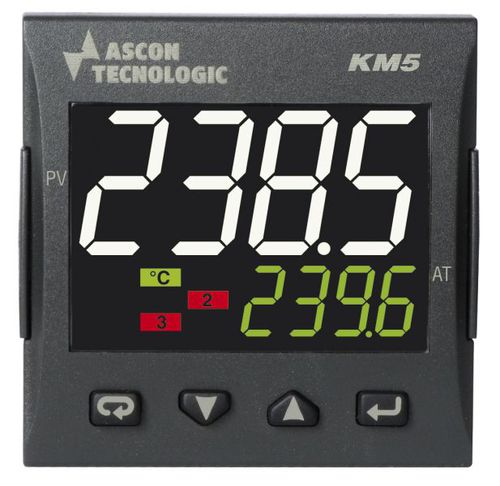

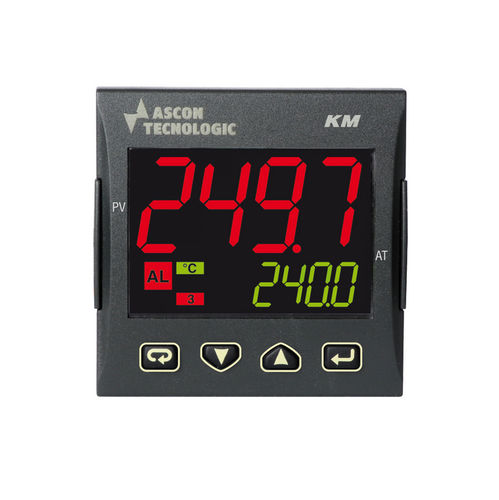

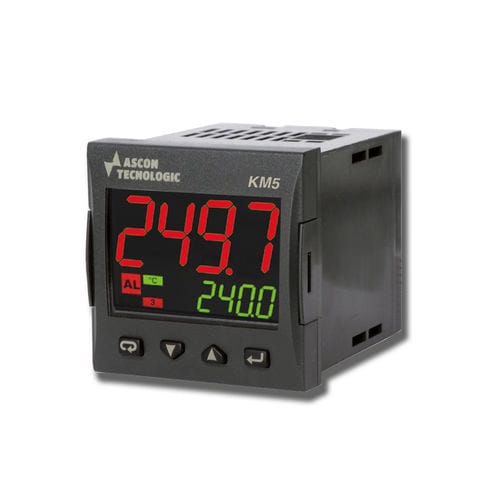

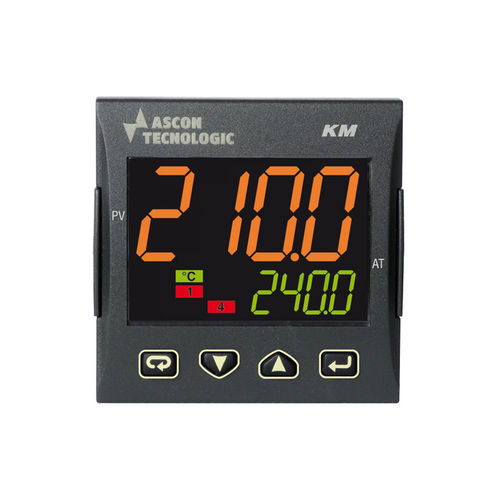

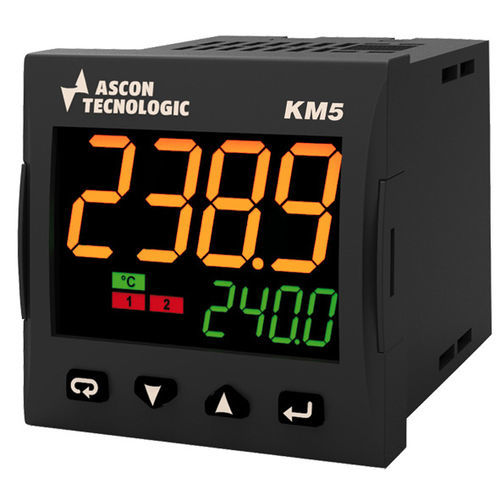

Controller-programmer with 96 segments divisible into 8 programs

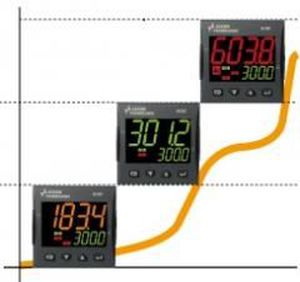

Let us organize your “programs”!

The KUBE series programmers are equipped with many interesting functions, for example:

• “Segment recovery” + “elapsed time recovery”, ie in the event of a power failure, program execution can restart from the point where it was interrupted (accuracy 1 minute)

• Possibility to manage sequences up to 4 programs even with different time base (h/min-min/s)

• Up to 999 Repetitions

FUNCTION -
Programmer, Transmitter, Controller

DIMENSIONS -
48 x 48 mm

DISPLAY -
2 display with 4 digit 3 dynamic colours

POWER SUPPLY -
24 Vac/Vdc, 100… 240 Vac

INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal

NUMBER OF OUTPUTS -
1, 2, 3, 4

OUTPUTS -
0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control, Servomotor

DIGITAL INPUTS -
1, 2

NUMBER OF PROGRAMS / SEGMENTS -
1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments, 8 programs with 12 segments

RETRANSMISSION OUTPUT -
0/2… 10 V, 0/4… 20 mA

INTERFACE -
RS 485 Modbus Slave, TTL Modbus

SPECIAL FUNCTIONS -
Digital retransmission, ON time, Power on delay, Soft start, Transmitter power supply, User calibration

CONTROL -
ON/OFF and PID single or double action, Servomotor

EXTRACTABILITY -
Not extractable, With fix terminal block, With removable terminal block

CERTIFICATIONS -
CE, UL

Parameter Name	Parameter Value
Display	double LED display
Type	PID programmable
Protection level	UL IP65
Use	industrial
Other characteristics	configurable RS-485 universal panel-mount 4-20 mA
Maximum temperature (°C)	-200 - 1760
