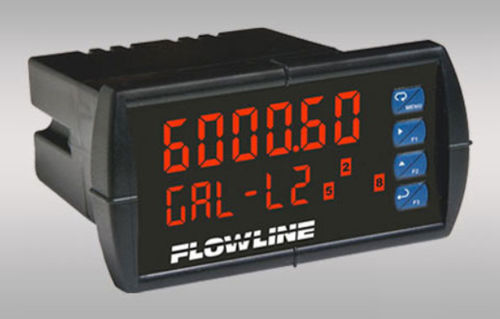

The general purpose AC or DC powered tank or silo level controller displays engineering units with one 4-20 mA level transmitter and is offered in three configurations with optional two or four programmable relays and an isolated 4-20 mA repeater. Each relay can be configured on a single set point as a high or low level alarm, or latched on two set points for automatic fill or empty control in simplex or duplex modes. Select this panel mount controller for use with general purpose two or three-wire level sensors. For field mount installation, add a single or double NEMA box with optional flash and/or audible alarm.

FEATURES

LED main display and secondary unit display with relay status
Easy configuration via the push button display module
1/8 DIN enclosure with NEMA 4X faceplate and shallow case
Isolated power supply to sensor with optional 4-20 mA repeater
Non-volatile memory with security password protection
32-point linearization function for volumetric measurement

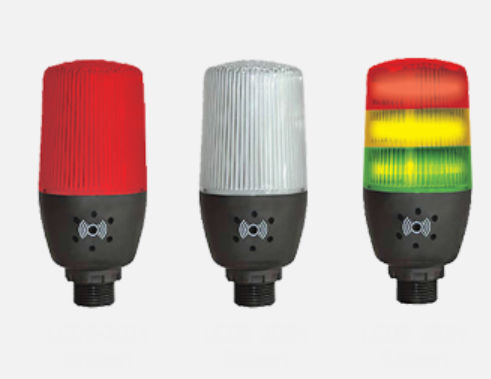

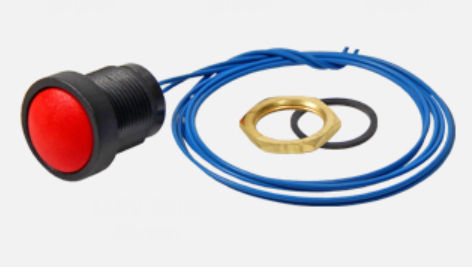

Available with NEMA boxes and tank alarm accessories

Display type: LED, 6-digit

Display units: Engineering

Display output: -99999 to 999999

Display height: Main: 0.6” (15mm), Secondary: 0.46” (12mm)

Decimal point: Floating

LED indication: Relay status

Configuration: Push button

Memory: Non-volatile

Linearization: 2-32 point function

Sensor input: (1) 4-20 mA or 0-10 VDC

Supply voltage: -1_ _1: 85-265 VAC @ 50-60 Hz, -8_ _1: 12-24 VDC ±10%

Consumption: VAC: 20 watts max., VDC: 15 watts max.

Sensor supply: 24 VDC ± 5% @ 200 mA

Repeater output: 4-20 mA, 24 VDC ± 5% @ 40 mA supply

Contact type: -12_1: (2) SPDT relays, -14_1: (4) SPDT relays

Contact rating: 3A @ 30 VDC, 250 VAC resistive load

Parameter Name	Parameter Value
Type	programmable
Applications	for storage tanks
