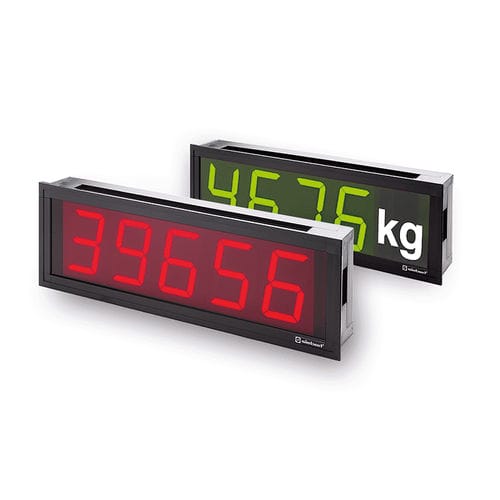

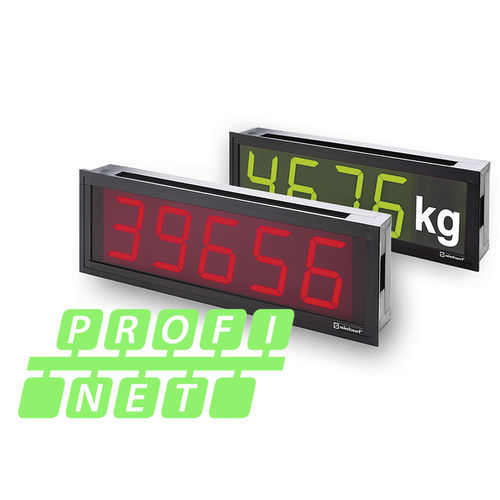

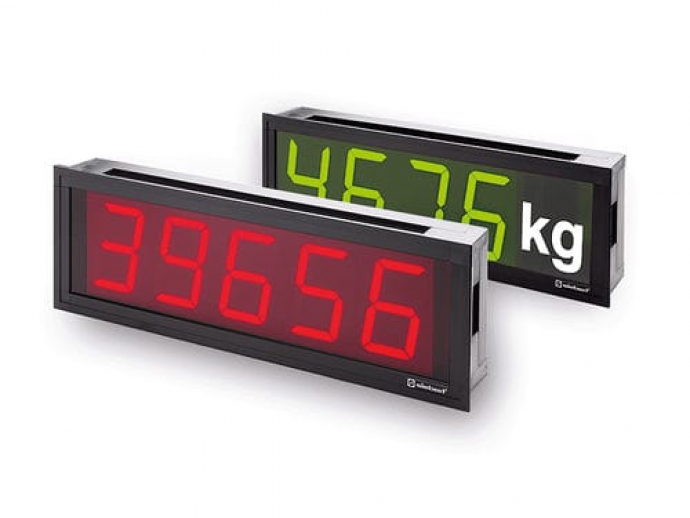

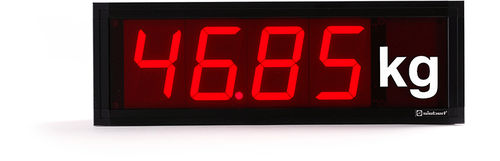

The digitals displays of the S202 series are designed for installation in front panels or for switch panel mounting. With character heights of 57 mm for the numeric versions they are also well readable from further distances.

Comfortable parameterization

The displays are fully parameterized with an engineering framework, for example Totally Integrated Automation (TIA) Siemens portal. This permits the parameterization even in build-in condition.
Integrated switch

The devices have two RJ45 sockets and an integrated IRT-ready switch in accordance with the conformance class CC-C.

Integrated Switch
Extended character set

Among the digits the character set also contains letters and special characters which can be displayed with a 7- segment matrix.

Extended Character set
Display overflow and underflow

If the display receives values which can not be displayed the following signs appear in the display.

Parameter Name	Parameter Value
Type	LED numeric color
Format	compact, cube-shaped, 5-digit, 4-digit, 6-digit, 3-digit, 2-digit, 1-line, 7-segment
Applications	for metrology industrial information digital signage for the environmental industry for the energy sector for transportation time date temperature for high-traffic areas for logistics set point picking for control panels
Other characteristics	indoor electronic smart wide-viewing angle built-in rugged high-contrast adjustable brightness Ethernet ProfiNet panel-mount IP65 waterproof integrated
