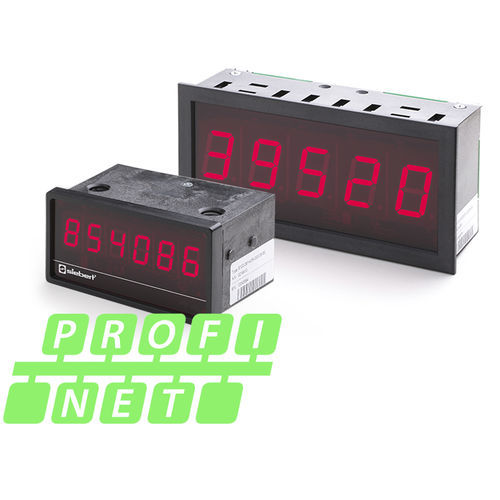

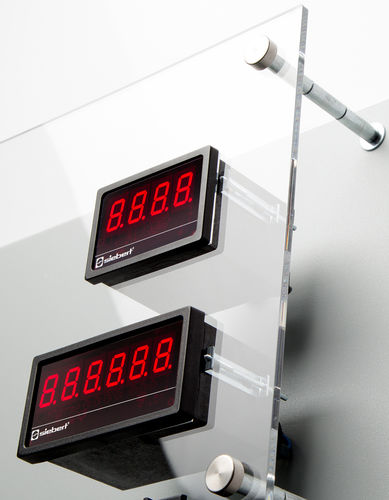

The digital displays of the S102 series are compact devices for installation in front panels or for switch panel mounting. The character height is 14 or 25 mm. They are available as four-, five- or six-digit displays.

Comfortable parameterization

The displays are fully parameterized with an engineering framework, for example Totally Integrated Automation (TIA) Siemens portal. This permits the parameterization even in build-in condition.

Integrated switch

The devices have two RJ45 sockets and an integrated IRT-ready switch in accordance with the conformance class CC-C.

Extended character set

Among the digits the character set also contains the other letters and special characters which can be displayed with a 7-segment matrix.

Display overflow and underflow

If the display receives values which can not be displayed the following signs appear in the display.


Leading zeros

The numbers of the leading zeros can be set individually.

Smart-Dot-Function

If the Smart-Dot-Function is activated the display moves the decimal point automatically, so that the value before decimal point is automatically displayed. The decimal places are either truncated or rounded.
To display a date or a code several decimal points can be displayed also.

Parameter Name	Parameter Value
Type	LED numeric
Format	compact, cube-shaped, 5-digit, 4-digit, 6-digit, 1-line, 7-segment
Applications	for metrology industrial information control digital signage temperature measurement for the environmental industry for control panels for the energy sector set point time date temperature picking for logistics for weighing devices
Other characteristics	wide-viewing angle electronic smart high-contrast explosion-proof adjustable brightness built-in Ethernet rugged IP65 waterproof indoor ProfiNet panel-mount integrated
