Concept for mix palletized automation together with parts handling. For Parts Handling, fully automatic change from part A to part B in the machine The system keeps track of NCprogram, cassette, gripper, chuck adapters, quantity etc.

Always Easy-to-use and reliable
The software is based on the WorkShopManager/CellManager from System 3R.

Open architecture
As with all System 3R products, its open architecture allows it to interconnect and serve different machines.

System 3R Hybrid automation can serve 3 milling machines

According to the part dimensions
System 3R Hybrid automation supports 8 different grippers.

Up to 2655 mm radial reach

Step into 24/7 automation
Prepare an extra shift and make sure you produced 24/7.

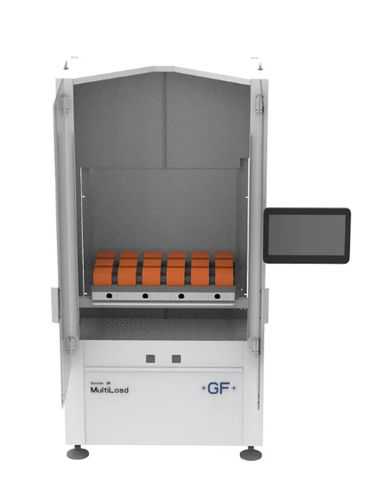

Cassette station software
Check the orders and which cassette type is required. Unload cassette from magazine to Cassette Station. Assign jobs to the materials. Load cassette to the magazine – start milling machine.

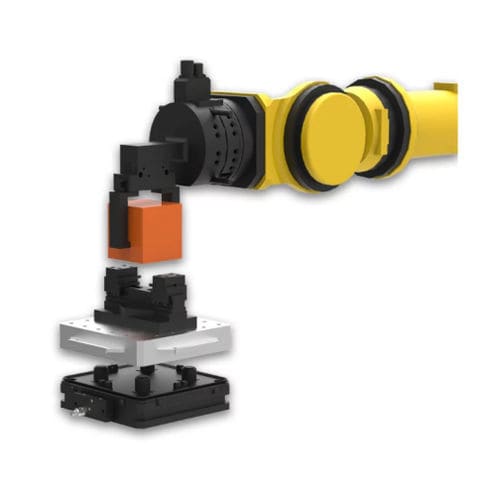

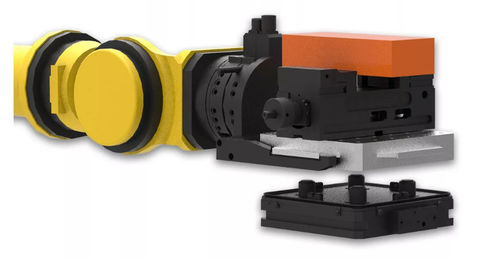

Part grippers
Manufactured according to the part dimensions.

Cassette Layout
Manufactured according to the Cassette dimensions.

Storage for grippers and adapters
Rack magazine with gripper storage and pallet positions.

Parameter Name	Parameter Value
Options	loading station for production machines
