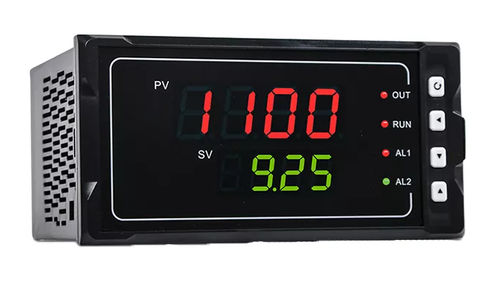

SUP-1100 is single-circuit digital panel meter with easy operation; double four-digit LED display, supporting input signals like thermocouple, thermal resistance, voltage, current , and transducer input; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc.

Features

7 types of dimensions available;

Standard snap-in installation;

Power supply: 100-240V AC or 20-29V DC;

Display - Dual-screen LED display
Dimension - A. 160*80*110mm
B. 80*160*110mm
C. 96*96*110mm
D. 96*48*110mm
E. 48*96*110mm
F. 72*72*110mm
G. 48*48*110mm
Input -

Thermocouple B, S, K, E, T, J, R, N, Wre3-25, Wre5-26;

RTD: Cu50, Cu53, Cu100, Pt100, BA1, BA2

Analog signal: -100～100mV, 4-20mA, 0-5V, 0-10V, 1-5V
Output -

Relay output
Power supply - AC/DC100~240V (AC/50-60Hz)
DC 20~29V

Main features

* Single-circuit digital display controller provides easy operation with measurement precision of 0.3%;

* 7 types of dimensions available;

* Double four-digit LED display, used to measure and monitor various industrial processes including voltage, current, frequency, and pressure;

* Supporting 2-way alarm, 1way control output or RS485 communication interface adopting

* Standard MODBUS protocol, 1-way DC24V feed output; photoelectric isolation between input, output

* Standard snap-in installation;

* Power supply: 100-240V AC/DC or 20-29V DC universal;

Parameter Name	Parameter Value
Measured value	current, voltage, process, temperature, pressure, flow, humidity
Display	4-digit analog LED
Type	panel-mount
Other characteristics	4-20 mA RS-485 Modbus precision
Applications	for thermocouples for RTD sensors
