Designed for applications with maximum operating pressure of 200 psig (13.8 bar) and/or temperature of 225ºF (107ºC).

Exclusive 3-Year “No-Leak” Guarantee: An innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens for a longer-lasting and better seal than conventional flat seals
Maintenance-Free Design: Bolt-on-body design requires no special maintenance or torqueing sequence in order to prevent leaks, resulting in safer operation than units using tie rods to fasten the lens and seal to the body
Dimensional Interchangeability: Feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers' units. Available in 3/4", 2", 3" and 4" sizes
High Vacuum-Service Rating: Rated for vacuum service up to 635 mm (25”) at 85.5% vacuum, which equates to 12.3-psi (0.84 bar) vacuum

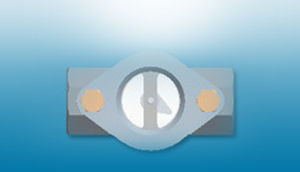

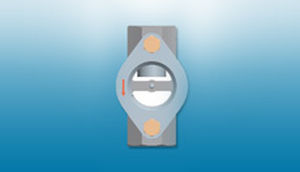

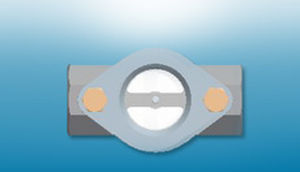

Four Indicator Styles: Drip Tube, Propeller, Bi-Directional Flapper, Bi-Directional Plane
48-Hour Shipping for Most Items

One of the key strengths of sight flow indicators is their remarkable versatility. For example, they can be used:

In a variety of industries.
To monitor and verify fluid flow through filter, cooling, intake/outlet pumping lines, as well as numerous other industrial processes.
For troubleshooting or as backups for meters, switches, process indicators and other control devices.

Parameter Name	Parameter Value
Measured value	process, flow
Display	tube propeller
Other characteristics	glass
