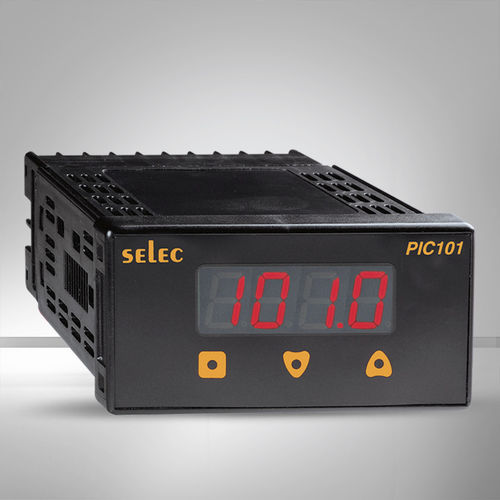

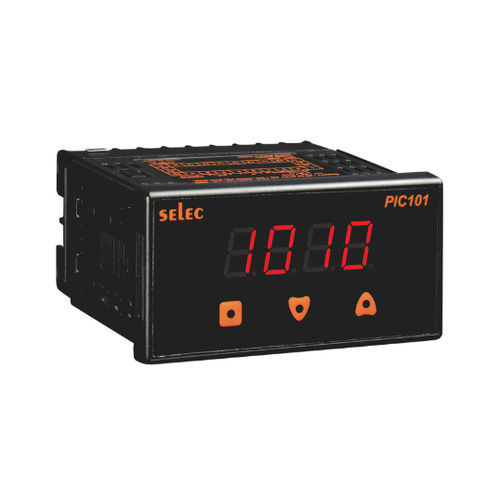

4 digit single display process indicator
Universal input (TC: J, K, T, R, S/ RTD: PT100)
Signal input: (-5 to 56mV, 0 to 10V DC, 0/4 to 20 mA DC)
24V DC @ 30mA sensor supply
48 mm x 96 mm size
Panel mount
90 to 270V AC/DC supply voltage
CE & UL

Specifications
Display Type - 7 Segment LED
Display Configuration - 4 digits
Type of Input - Thermocouple (J,K,T,R,S) / RTD (PT100), Single Input (DC): 0 to 56mV, 0 to 10V, 0/4 to 20mA
Resolution - TC/RTD: 1/0.1°, analog input 1/0.1/0.01/0.001
Accuracy - For TC inputs: ± 0.25% of F.S ± 1º R & S inputs: ± 0.5% of F.S. ± 2º (20min of warm up time) For RTD inputs: ± 0.1% of F.S. ± 1º Cold junction accuracy:± 5ºC, Single input: ± 0.5% of F.S,± 1 digit
Sensor Supply - 24V DC, 30mA
Supply Voltage - 90 to 270V AC/DC
Size - 48 x 96mm
Mounting Type - Panel Mount
Certification - CE & UL

Parameter Name	Parameter Value
Measured value	process, temperature
Display	digital analog
Type	panel-mount
