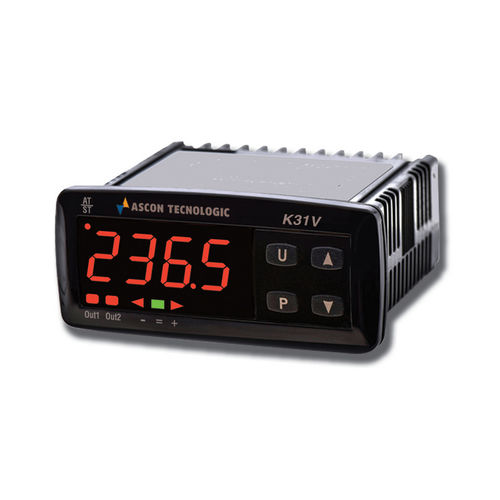

Indicator with independent timer, 4 outputs and serial communication
In addition to the normal indicator functions, this instrument has an independent timer on board with 5 operating modes, 4 relay outputs or for piloting external static relays and RS485 serial communication.
It is also possible to configure user calibration and complete customization of parameter navigation, functions that make it an extremely versatile and efficient indicator
FUNCTION -
Indicator
DIMENSIONS -
78 x 35 mm
DISPLAY -
1 display with 4 digit
POWER SUPPLY -
12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac
INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, 1 digital, NTC, Pt100, PTC-NTC, Thermocouple
NUMBER OF OUTPUTS -
1, 2, 3, 4
OUTPUTS -
Relay
DIGITAL INPUTS -
2
INTERFACE -
TTL Modbus
SPECIAL FUNCTIONS -
HACCP functions, Transmitter power supply
EXTRACTABILITY -
Not extractable, With fix terminal block, With removable terminal block
CERTIFICATIONS -
CE, UL
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
process, temperature, universal
|
| Display |
4-digit
|
| Type |
panel-mount
|
| Other characteristics |
|
| Applications |
|
