The ITP11 Process Indicator 4-20 mA is a universal process display for monitoring industrial processes. This digital process meter is ideally suited for quick and convenient developing of visualization systems for various applications, e.g., water supply or thermal processing. The digital display ITP11 can serve both as a useful additional display of the measured values on site and as a part of a sophisticated visualization. This industrial display is loop-powered and causes a voltage drop to the current loop of 4V maximum.

4-20 mA digital display for universal application

The ITP11 Process Indicator 4-20 mA is a universal process display for monitoring industrial processes. This digital process meter is ideally suited for quick and convenient developing of visualization systems for various applications, e.g., water supply or thermal processing. This digital display can serve both as a useful additional display of the measured values on site and as a part of a sophisticated visualization.

Compact design and high IP rating

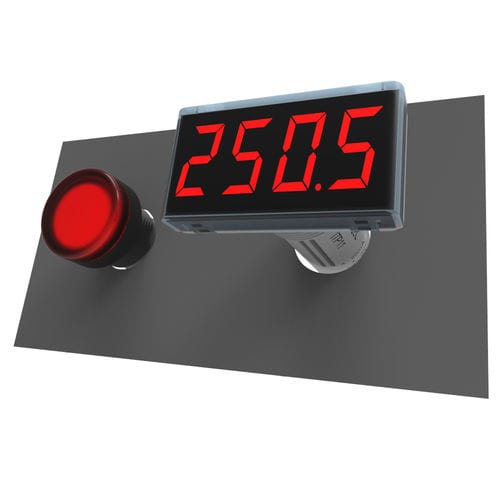

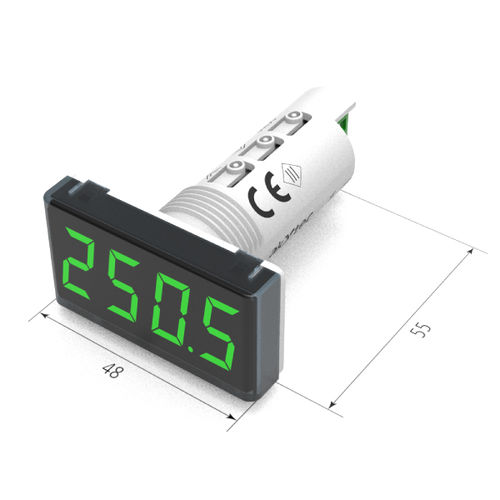

Thanks to standardized cylindrical form and minimal dimensions, this 4-20 mA process display fits into a standard 22.5 mm mounting hole for indicator lights or push buttons. The digital displays can be installed in a space-saving, quick and convenient way allowing the integration of a large number of these current loop indicators in control cabinets or panels.

The 4-20 mA digital display ITP11 ensures excellent legibility in various lighting conditions, from wide angles, and considerable distances even at low current.

Parameter Name	Parameter Value
Measured value	process, voltage, current loop
Display	4-digit 7-segment LED
Type	panel-mount
Other characteristics	4-20 mA compact analog output easy to install with alarm loop-powered blinking lightweight
Applications	for sensors
