DUAL INPUT DISPLAYS

Reference : DISP-PAXDP

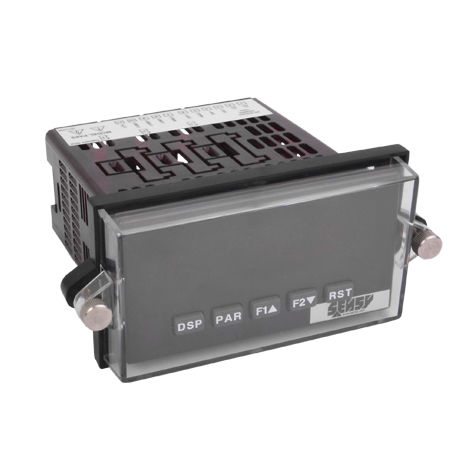

Dual independent process input meters.

o A math function can be performed on both signals.
o Any of the 3 meter values can have alarms, analogue output or comms by adding optional card.
o Intuitive and easy programming (high flexibility)
o Variable intensity display
o 16 points scaling for linearisation
o Programmable function keys/user inputs

AVAILABLE OPTIONS
- Analogue output 4 (0)...20 mA or 0...10 V
- 2 or 4 set-points with relay outputs
- RS-232, RS-485, USB or fieldbus capabilities
- NEMA 4X / IP67 (transparent protection cover - Option "COVER PAX")
- Desktop or industrial steel housing
- Rail DIN adaptor

Parameter Name	Parameter Value
Measured value	process
Display	digital
Type	panel-mount
Other characteristics	programmable RS-485 RS-232 USB
