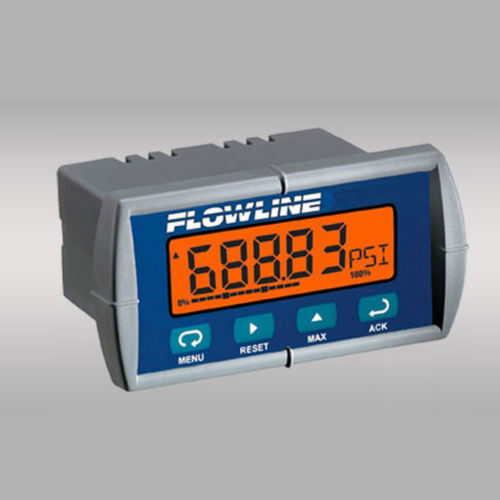

FM and CSA approved, the intrinsically safe loop powered level indicator displays engineering units connected in series with one 4-20 mA level transmitter. Select this panel mount indicator for use with intrinsically safe two-wire level transmitters. For field mount installation, add a single or double NEMA box.

FEATURES

Easy configuration via the push button display module
LCD main display with secondary unit and bar graph display
DIN enclosure with NEMA 4X faceplate and shallow case
Linear, square root and programmable exponent functions
Non-volatile memory with security password protection

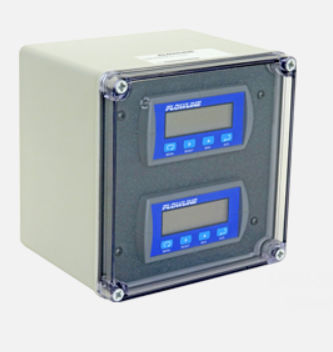

Windowed NEMA box accessory for field installations

Display type: LCD, 5-digit

Display units: Engineering

Display output: -9999 to 99999

Display height: 0.6” (15mm)

Decimal point: Floating

Backlight: LED, orange

Configuration: Push button

Memory: Non-volatile

Sensor input: (1) 4-20 mA transmitter

Loop power: 12-30 VDC

Voltage drop: 2.0 VDC w/o backlight, 5.7 VDC w/ backlight

Process temp.: F: -22° to 149°, C: -30° to 65°

Ambient temp.: F: -40° to 149°, C: -40° to 65°

Enclosure type: 1/8 DIN, panel mount

Enclosure rating: NEMA 4X (IP65) faceplate

Enclosure mat’l: Polycarbonate

Classification: Intrinsically safe

Compliance: CE

Approvals: FM, CSA: Class I, Div 1, 2, Groups A, B, C, D; Class II, Div 1, Groups E, F, G; Class II, Div 2, Groups G, G; Class III, Div 1; Class 1, Zone 0, Group IIC; T-code = T4

Parameter Name	Parameter Value
Measured value	process, voltage, power, height
Display	LCD display LED
Type	panel-mount
Other characteristics	programmable 4-20 mA loop-powered square intrinsically safe
Applications	for sensors transmitter
