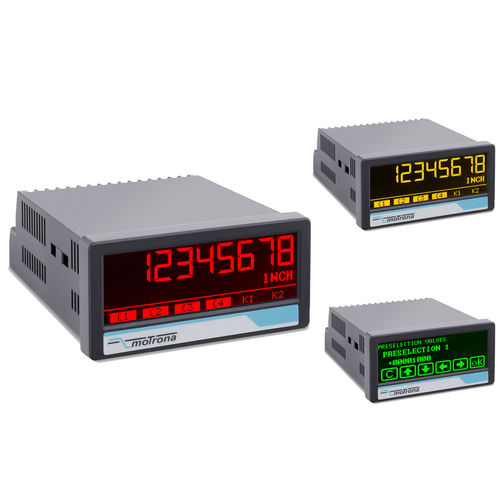

touchMATRIX® Process Indicator with 2 Analog Inputs (16 bit), 3 Control Inputs

• Extensive functions such as limit monitoring and analog output optionally available

• 2 universal 16 bit analogue inputs for ±10 V or 0/4 … 20 mA
• 3 control inputs for HTL / PNP signals
• Power supply 18 ... 30 VDC
• 24 V auxiliary output for encoder supply
• High accuracy reference output 10 V for potentiometers > 1 kOhm
• 3.78 x 1.89 inch norm panel housing and IP65 protection
• Bright and high-contrast display with event-dependent color variations
• Emulation of a 7-segment display inclusively icons and units
• Intuitive and easy parameterization by plain text and touchscreen
• Operating modes for visualization of INPUT 1, INPUT 2 or
combinations of IN1 + IN2, IN1 - IN2, IN1 x IN2, IN1: IN2
• Numerous features, e. g. Ttara, filters, averaging
• Linearization with 24 control points

Options can be combined:

• AC: Power supply 115 ... 230 VAC
• AO: 16 bit analog output, 4 control outputs, serial RS232 interface
• AR: 16 bit analog output, 4 control outputs,serial RS485 interface
• CO: 4 control outputs, serial RS232 interface
• CR: 4 control outputs, serial RS485 interface
• RL: 2 relay outputs
• IO: IO-Link Device

Parameter Name	Parameter Value
Measured value	process
Display	7-segment LCD with touch screen
Type	panel-mount
Other characteristics	programmable 4-20 mA RS-485 RS-232 analog output analog input with relay output transistor output IO-link
Applications	for potentiometers
