Digital Indicator
Single-channel or multi-channel version for strain gauge, potentiometer, norm signals, Pt100 and TC
Features
•For force, pressure or torque measurements using strain gauge sensors
•For position or angle measurement using potentiometric or DC/DC sensors
•For temperature measurement using Pt 100 sensors or thermocouples
•Optional multi-channel model
•Optional PROFIBUS or serial interface
•0.1 % measurement accuracy plus sensor-specific linearization
•Range of mathematical functions (e.g. differential measurement)
•OK/NOK feedback on multi color display and via 4 alarm limit outputs
•High sampling rate (500/sec.)
Description

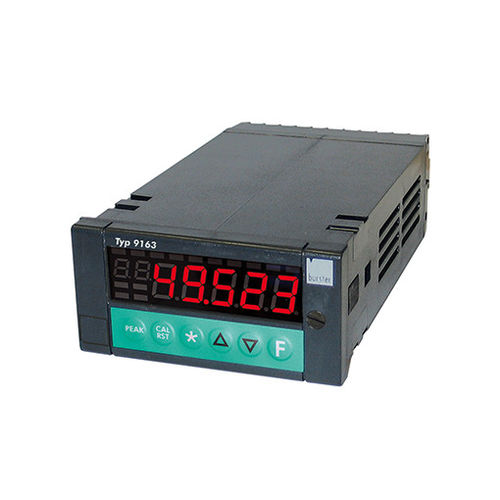

The 9163 process value indicator covers a wide range of applications in which process values need to be measured, displayed, analyzed and transferred to higher-level control systems. Typical applications include measuring geometric values in production, for instance differential measurements, or testing material properties in the laboratory.
The measured values can be transferred via PROFIBUS, RS232 interface or analog output.
The multi-channel version can be used with up to four sensors. These sensors can be combined using mathematical functions, so that even complex measurement tasks can be performed with just the one instrument.
Visual alarms on the display make it easier and more convenient to assess when values lie off-limits. Up to four configurable outputs are available as relay or logic outputs.
The excellent measurement accuracy of 0.1% also makes this instrument suitable for high-precision applications. Two digital inputs are provided for controlling various functions such as Reset or HOLD.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
process
|
| Display |
digital
|
| Type |
panel-mount
|
| Other characteristics |
|
| Applications |
|
