Key Highlights & Features
•0.25/V sensitivity (non-trade)
•Built in RS232 and RS485
•Clock/Calendar/RAM Fitted
•Configurable serial outputs
•High contrast LED display
•Totalising, Hold and Peak Hold
•Trade approved 6,000d@0.5uV/d

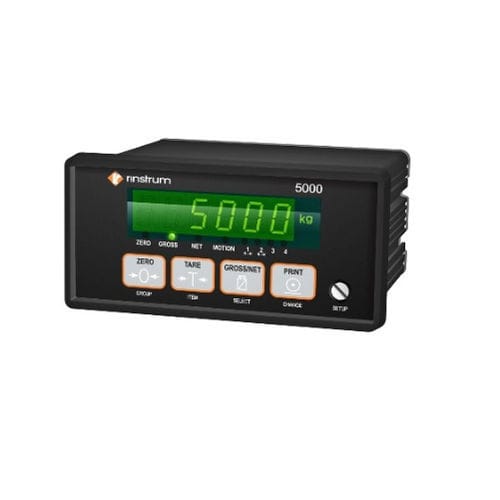

Product Description
The updated approval NMI S418 for the internal AC version of the 5000 series indicator has been finalised and is available in the NMI downloads. Both the AC and the DC version are in stock in our Brisbane office.
With 50,000 units sold globally the 5000 series of indicators represents mature proven technology. With an extensive range of interfaces and mounting options, installations can be readily customized,which represents savings for the user. Support for common industry standards used in process control - which allows for easy system integration.
•Built-in RS232 serial communication
•Built-in RS485 networking
•Analogue Output 4-20mA or 0-10V with 1/65,000 resolution
•Isolated digital I/O
•Modbus ASCII
•DIN Rail Mount Interface
Industrial Process Controller
•DIN standard housing - Allows for the unit to be readily mounted into standard DIN cutouts, reducing modifications to the units they are being installed into.
•High current outputs - Reduces wiring and the need for external relays, saving installation cost and reducing overall system size.
•Isolated outputs - Eliminates the possibility of the external control systems influencing the weighing process, therefore simplifying system design and installation.
•Robust I/O - Reduces unplanned outages due to component failure and reduced life time costs for the installation.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
process, AC voltage, weight
|
| Display |
digital
|
| Type |
DIN rail
|
| Other characteristics |
|
