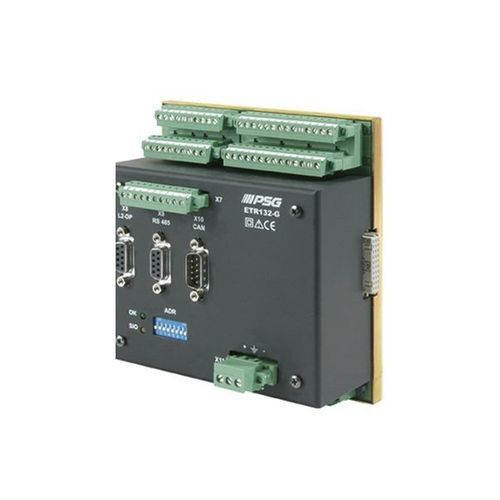

Process control system ETR 132 II G

Process control system ETR 132 II G

Process control system ETR 132 II G

About


Microprocessor control system for up to 32 three-position control zones
Modular structure: one base unit ETR 132 II G and up to three expansion units ETR 132 II E with 8 control zones each
Simple and unproblematic installation and start-up
Very good price-performance ratio due to modular structure
Flexibility through large array of functions
Production reliability through constant process monitoring
Easy and unproblematic installation due to installation friendly system structure
System expandability through numerous peripheral components
Minimal configuration effort due to free of charge, customer-specific configuration settings

GENERAL DATA
Number of control zones - 32
Rated voltage - 230VAC | 24VDC
Power consumption - Max. 25 VA for 24VDC
Fuse protection - 2 A T | 4 A MT
Status display - LEDs
Dimensions - (HxBxT in mm) 140 | 155 x 125 x 75 (G), 140 | 155 x 125 x 30 (E)
Mounting - DIN rail (DIN EN 50022)
Housing - Metal
Weight - 1.2 kg (G), 0.7 kg (E)
Operating temperature - 0...55 °C
Connections - Screw terminals
Ingress protection - IP20; D-Sub without PVC cover: IP00
Addressing mode - DIP switch
Standards - CE, EN 61010
Data backup - Power failure safe in EEPROM

DATA INTERFACES
RS485 - Series; protocols: PSGII, Modbus RTU | Baud rate: 1200 - 19200 baud
CAN - Option; protocols: CAN Bus Standard (2.0A), Canopen (Profiles CiA 401 V2.01)
Profibus DP - Option;



PARAMETERS

Parameter Name Parameter Value
Function
  • process
  • protection
  • power
  • temperature
