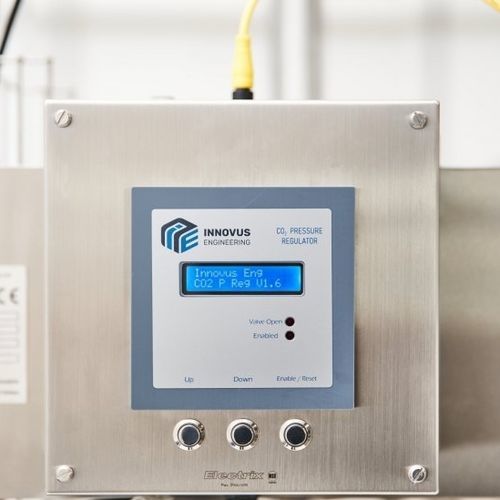

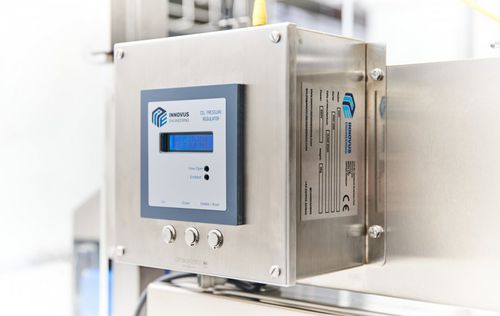

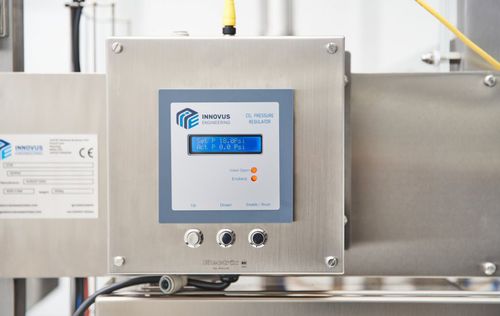

The PM1 Pressure Monitor is a device used for controlling brite tank head pressure to increase filling performance during packaging. It can also be used for carbonating and kegging.

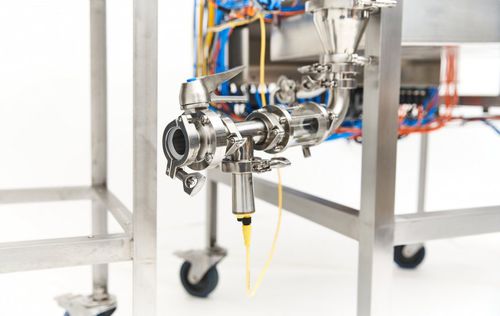

The pressure monitor uses a hygienic tri-clamp pressure sensor that can be attached to the product inlet, or the base of the tank.

A CO2 line is attached to the 3/8″ fitting on the bottom of the box, which takes the CO2 through a solenoid valve. The solenoid opens and closes to allow CO2 through the hose out the top of the box to the headspace in the brite tank.

This allows a consistent flow rate of product from the tank to the filler and stops fluctuations in tank pressure that bottle regulators can’t maintain.

Parameter Name	Parameter Value
Type	pressure
Applications	for tank
Domain	for the packaging industry
Configuration	wall-mounted
Other characteristics	digital
