For monitoring the ambient air in rooms with gas-filled equipment for measuring different tracer gases

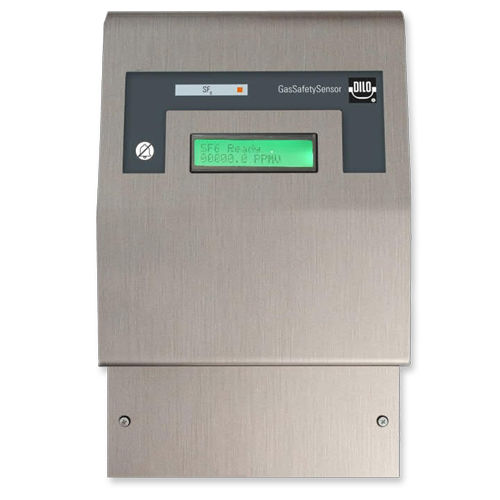

The Sensor unit detects the lowest concentrations of the gas to which it is adjusted/calibrated and permanently shows the current measured value on the display.

There is no radioactive source in any of the DILO Sensors, so no special precautions regarding radioactive hazardous substances are required during operation. The Sensors are also characterised by a fast response time with stable measuring results.

Cross-sensitivities of the Sensors to other gases and to air moisture are not known. Naturally existing gas components in the air can be suppressed. For example, when using a CO2 sensor, it can be set in such a way as to hide the natural CO2 content in the air so that only values which are above this natural content are measured.

The warning and alarm levels of each Sensor can be freely configured. If the default setting is to be changed this can be done either via the connected GasSafetyMonitor or via a web server.

Other features:
• - Operation either as a stand-alone unit or in networks connected to a GasSafetyMonitor
• - Different acoustic signals to be set on the unit. Visual display of errors, warnings and alarms
• - Potential-free relays for errors, warnings and alarms
• - High long-term stability
• - Sensors are connected via an RJ45 cable (Ethernet and Power over Ethernet (PoE))
• - No maintenance and no consumables required
• - Analogue output (4…20 mA)
• - Message on the expiry of the recommended calibration interval
• - Power is supplied separately (24 V DC) or alternatively in the network via Power over Ethernet (PoE)

Parameter Name	Parameter Value
Type	pressure
Applications	air contamination SF6
Other characteristics	continuous indoor stand-alone
