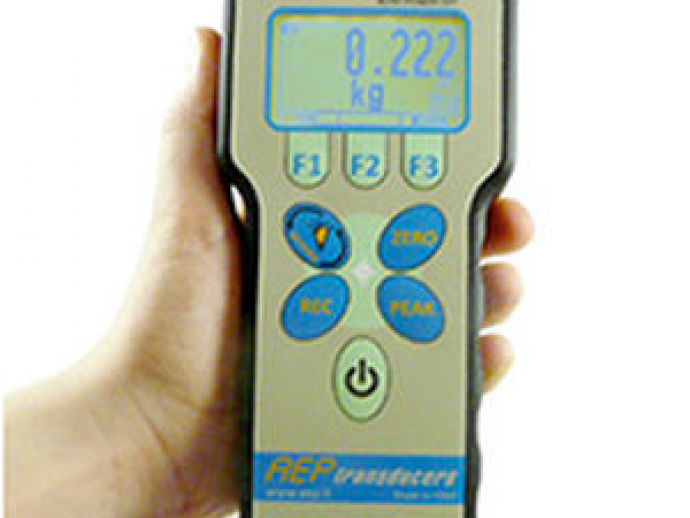

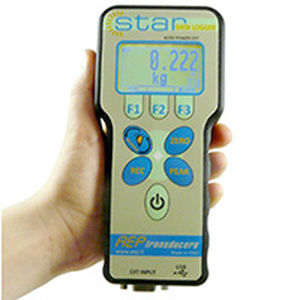

STAR is a professional ergonomic indicator extremely
versatile and easy to be used for measurement of
FORCE, WEIGHT, PRESSURE (gas), VACUUM, TORQUE
and DISPLACEMENT.
It is possible to integrate inside a force sensor ( up to
max. 5kN) or a pressure sensor (relative, absolute or
differential up to max. 5bar) while from the external
input it is possible to connect strain gauges sensors
with output in mV/V such as: load cells, force
transducers, pressure transducers, torque and
displacement transducers.
Internally the microcontroller process the signals
coming from the sensors through a 24 bit (±50.000
divisions at 2mV/V) analogue digital converter at a
conversion frequency varying from 5Hz at 4800Hz by
making it suitable for every application that may
require both high resolution and high sampling
frequencies.
The display of measurements happens through a big
graphic backlighted display.
Star is equipped with USB interface that allows both
the communication in real-time with a PC and the
recharge of the internal long-lasting and great
reliability battery (Li-Ion).
In addition to the direct reading of the
measurements, it is possible to detect PEAKS, block
the measurement on the display thanks to the HOLD
function and through the internal DATA LOGGER it is
possible to record up to 130.000 measurement at
programmed intervals or manually through the REC
button.

Parameter Name	Parameter Value
Measured value	pressure, torque, force, weight
Display	digital
Type	portable
Other characteristics	programmable USB with integrated data logger
Applications	for sensors
