Compact logger for pressure and temperature
pressure range: 1 to 2,000 mbar
temperature range: -20 to 60°C
interval: 100ms, 1s, 10s, 1min
flash memory for up to 600,000 entries
operation via Android App
wireless NFC communication
wireless charging
Information
A highly mobile solution for measuring and logging rapidly and accurately everywhere in production.
The compact device is suitable for measuring and logging of ambient pressure and temperature.
The PATBOX allows the setting and monitoring of machines that work with vacuum, for example inert gas packaging.

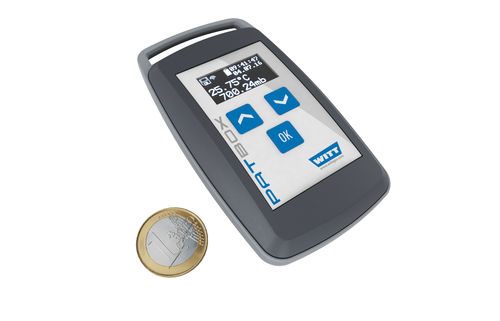

This compact instrument with OLED display is really easy to operate: The PATBOX data logger does not have to be connected, but instead registers pressure and temperature via integrated sensors.
The measuring range of the pressure and temperature logger extends from 0.15 to 29 psi or -20 to 60 °C (-4 to 140 °F). Once initiated via the button or timer, the box registers its measurements at intervals of 100 ms, 1s, 10 s or 1 min.
The internal flash chip records 600,000 entries: at ten measurements per second, extremely precise progress monitoring over up to 16 hours is also possible in addition to purely random sampling.
Compared to other devices the PATBOX does not communicate via a USB cable but via a NFC wireless connection. The data can be read via a smartphone or tablet app for Android. Additional special feature: The battery is charged wirelessly on a charging base.
Benefits
highly mobile and accurately measurement and logging of pressure and temperature
extremely small size
high process reliability
state-of-the-art sensor technology
comfortable configuration and software update per Android App
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
temperature, pressure, vacuum
|
| Connector type |
wireless, NFC
|
| Display |
with screen
|
| Applications |
|
| Other characteristics |
|
| Memory capacity |
Max.: 2,000 unitMin.: 1 unit
|
