Multi Applications data loggers
measured quantity : Rainfall, Water height, Inclinometer, electromagnetic flowmeter
Wireless setting on-site by radio on-site
Communication : Radio + 1 optional communication card 2G / 4G (LTE-M / NB-IoT)
Memory : 500 000 measures
Housing : Rugged & compact, sealing IP68 (Tested at 1 bar (10m water height) during 30 days
1x voltage input (5V…30V), 2x 4-20 mA (2 wires) inputs, 2x digital inputs : Contact or counter 100 Hz
1x voltage output (5V…18V), 1x open drain output
Software offering quick and easy configuration at each step (measurement period, threshold, conversion, data sending, report …)

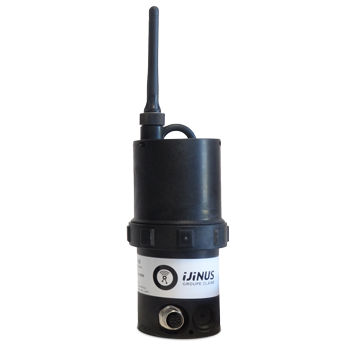

The wireless data logger LOG03V4 is battery powered and integrate communication features such as radio only, or radio + a communication card (2G / 4G). The configuration is done securely by radio on-site (no activation needed on the devise).

These multi application loggers allow you to work on different applications such as:
– CSO monitoring (Overflow detector LSC)

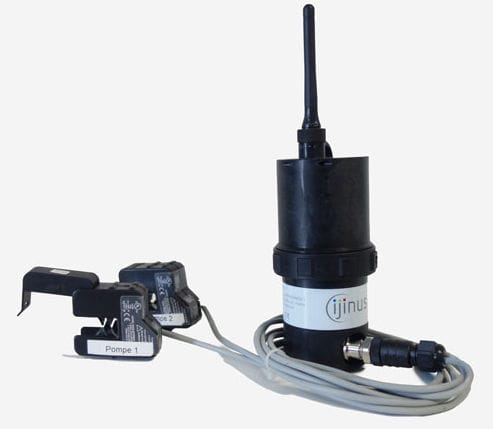

– Lifting station monitoring (Current clips F0A00066) and F0A00046)
– Groundwater resource (Level pressure sensor CNR)
– Rainfall (RG20 and RG25)
– Water height/Flow with pressure sensors (Sensor range CNR)
– Pressure on drinking water pipes (Sensor range CPA)
– Inclinometer sensor (F0T00002)
– Other sensors with 4-20mA output
– Flow measurement on drinking water network (connection by 4-20mA on electromagnetic flowmeter)
– Metering of drinking water (connection to flowmetter via a pulse unit)

Parameter Name	Parameter Value
Measured quantity	pressure, 4-20mA, flow, pulse, level, overflow, dry contact, tilt
Connector type	radio frequency, GSM / GPRS, RFID, 4G, 2G, LTE-M, NB-IoT, with PC interface, online
Display	without display
Applications	rain gauge
Other characteristics	IP68 programmable battery-powered compact multi-channel stand-alone with connector rugged portable with external sensor with web interface environmental cellular IoT computer-based
Memory capacity	500,000 unit
