About
Mensor pressure controllers such as the CPC8000 have been part of the WIKA product range since 2006.
Application

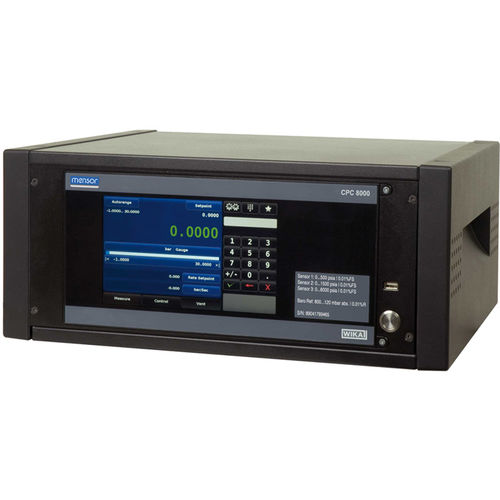

The model CPC8000 high-end Mensor pressure controller provides always an appropriate calibration solution on account of its accuracy class. Its outstanding control performance is particularly impressive, thanks to special, patented valve technology and the specific pressure sensor as a measuring unit. With this the Mensor pressure controller is suitable as a factory or working standard for the testing or calibration of any type of pressure measuring instrument.
Applications of the Mensor pressure controller
Industry (laboratory, workshop and production)
Transmitter and pressure gauge manufacturers
Calibration service companies and service industry
Research and development laboratories
National institutes and institutions
Special Features of the Mensor pressure controller
Pressure ranges: -1 ... 400 bar (-15 ... 6,000 psi) in the pressure types positive and negative gauge pressure als well as absolute pressure
Up to three integrated, interchangeable reference sensors
Control stability 0.002 % of the span
Accuracy down to 0.008 % IS (IntelliScale)
Precision 0.004 % FS
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for pressure calibration
|
