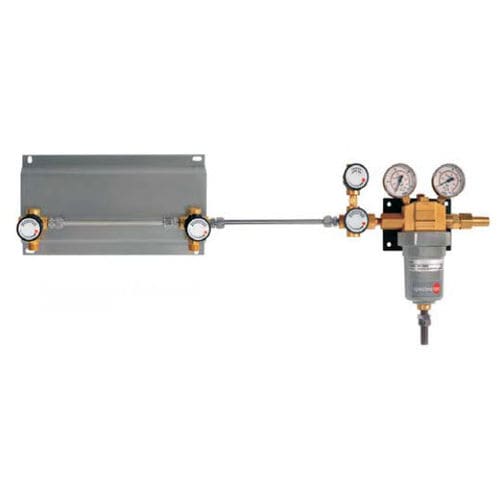

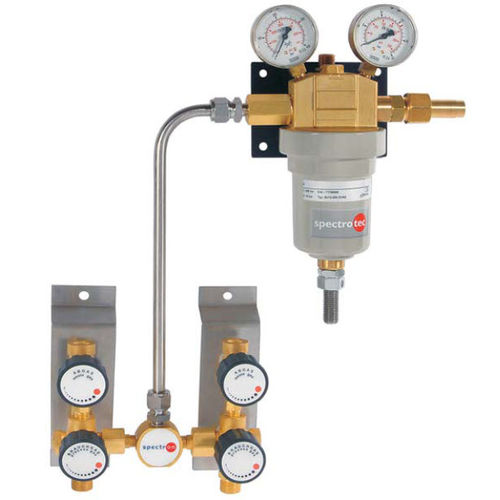

Pressure calibration control panel BU13

Pressure calibration control panel BU13

Pressure calibration control panel BU13

About


Pressure control panels for high flow rates
For non-corrosive industrial gases
Ergonomically designed

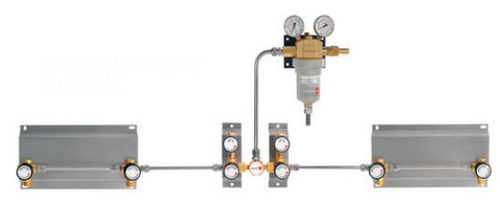

Modular design (to be extended to 1x2, 1x3, 2x2, 2x3 etc. cylinders)
Filter at the process gas inlet valve
Central filter in the regulator
Regulator with high control accuracy and integrated relief valve
Shut-off valves with On/Off-position indicators
Process gas and purge valve on the inlet pressure side
Safety pressure gauges acc. to
DIN EN ISO 5171
Optional safety devices acc. to DIN EN 730
Designed for easy installation
Tested for use with oxygen
Suitable for inlet pressure values of up to 300 bar
Single-sided and double-sided models available



PARAMETERS

Parameter Name Parameter Value
Application
for pressure calibration
Other characteristic
stainless steel
