Design

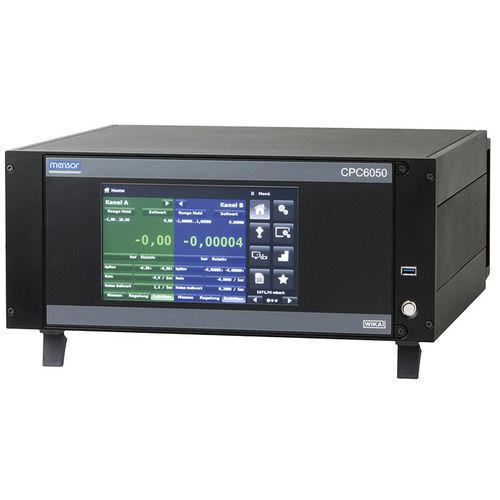

The highly configurable pressure controller model CPC6050 modular pressure controller offers maximum flexibility to best suit the customers’ requirements. The pressure controller can have up to two independent pressure regulating channels which can operate simultaneously. Each channel can have up to two sensors. The instrument can also have an optional barometric reference for gauge or absolute pressure emulation. This instrument can be specified as a desktop or as 19" rack-mounting kit.
Applications of the pressure controller
Healthcare and avionics industry
Industry (laboratory, workshop and production)
Transmitter and pressure gauge manufacturers
Calibration service companies and service industry
Research and development laboratories
Special features of the pressure controller
Pressure ranges: -1 ... 210 bar (-15 ... 3,045 psi)
Control speed 15 s
Control stability < 0.003 % FS (typical 0.001 % FS)
Accuracy down to 0.01 % IS (IntelliScale)
Precision 0.004 % FS

Parameter Name	Parameter Value
Other characteristics	precision digital
