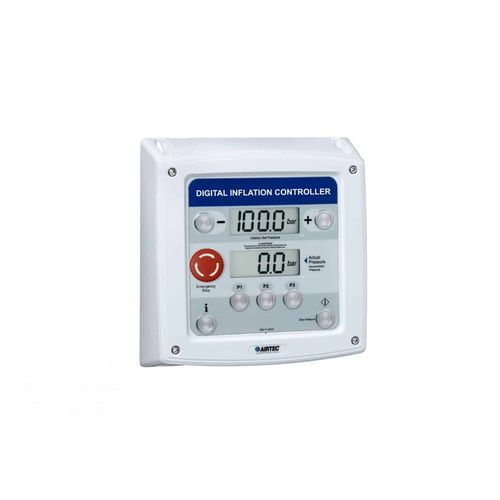

Airtec’s digital inflator technology offers high accuracy and improved safety when adjusting or charging high pressure accumulators and shock absorber struts used in aviation, rail, mining, heavy transport & industrial applications.

The 89XHP100 is designed with a high pressure control valve (up to 100 bar / 1450 psi) and comes equipped with high pressure hoses and a high pressure inflating connection (H-556). The 89XHP’s program can be customised to inflate a range of different volume actuators, accumulators and shock absorbers or struts. 89XHP300 is specially designed for inflation pressure up to 280 bar / 4060 psi.

Supplied with 10m steel braided hose
Customisable preset pressure switches
Vandal resistant piezo switches

Technical Specifications
Construction - Diecast aluminium enclosure (IP66)
Dimension - 269 W x 285 H x 106 D mm
Power requirements - 11-18Vdc / 8-16Vac / 110V-120V, 50 or 60Hz / 220V-240V, 50 or 60Hz
Units of measurement - psi / bar / kPa (MPa)
Operating range -
Accuracy - +/- 0.5% FS

Parameter Name	Parameter Value
Other characteristics	precision
