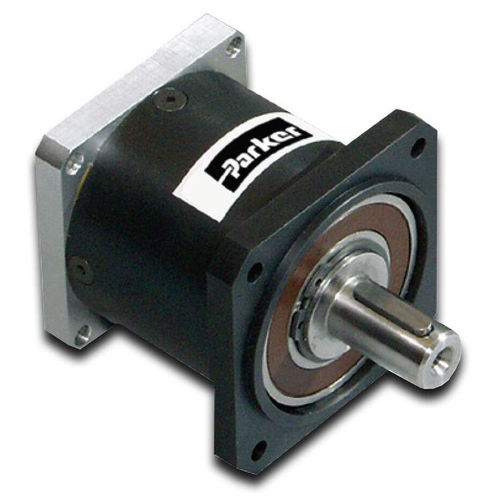

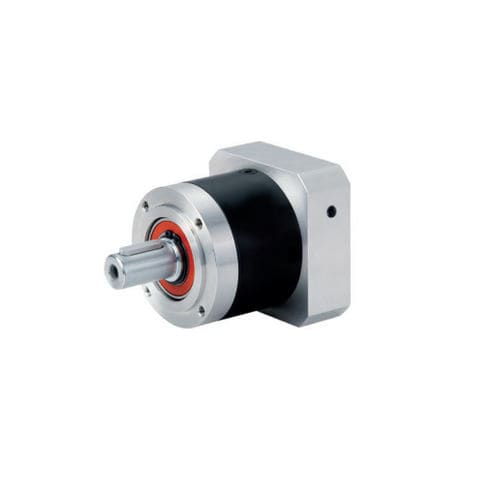

The standard precision PE-series inline planetary gearheads are available in 40-155mm frame sizes and offer high torque, low backlash, high input speeds and a small package size with an excellent price/performance ratio.

The PE-series planetary gearbox is the perfect economy gearbox for all applications where standard backlash is suitable.

Markets:
• Factory Automation
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Lab/Diagnostic
• Life Sciences
• Pharma

• Frame Sizes: 40 - 155mm
• Ratio Options: 3:1 - 64:1
• Backlash: to < 7 arc-minutes
• Efficiency: up to 97%
• Quiet Operation: less than 70db
• High output torques
• High quality (ISO 9001)
• Any fitting position possible
• Simple motor fitting
• Life time lubrication
• Direction of rotation equidirectional
• Balanced motor pinion

• Industrial Equipments
• In-Plant / Automotive Industry Equipments
• Robotics
• Special Machines

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	200 - 500 100 - 200 50 - 100 20 - 50
Shaft configuration	solid-shaft
Performance	precision high-torque low-backlash high-speed
Applications	for automation for food industry machinery machines
Other characteristics	industrial for robotics for packaging machines for automotive applications
