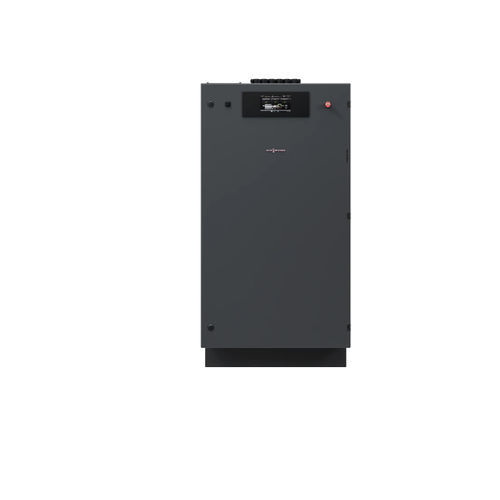

Combined heat and power unit for natural gas and LPG operation

Electrical output: 15 or 20 kW
Thermal output: 38.3 or 46.5 kW
Smooth running 4-cylinder engines
H₂ ready 20 %

Electrical output
15 kW (type NG 15) or 20 kW (type NG 20)

Thermal output
38.3 kW (type NG 15) or 46.5 kW (type NG 20)

Smooth running 4-cylinder engines
For low sound emissions

H₂ ready
Blends of 20 % hydrogen possible

Suitable for various fuels
Natural gas, bio natural gas, LPG

Optimum ratings for many applications
Small businesses, apartment buildings, hotels, restaurants, car dealerships, commercial nurseries and swimming pools

Low maintenance costs
Due to long maintenance intervals of 8000 hours run

Completely ready-to-connect
Plug and play design

Reduced installation work
Through water-cooled generator

Meet strict TAB conditions
Compliant with the strict technical connection conditions (TAB) of power supply utilities in Germany

Tested to VDE AR-N 4105
With integral GS protection

ViNCI
CHP control system developed by Viessmann

Integral LAN interface
For remote monitoring

Flexible setting of parameters
Tailored to system-specific requirements

Integral heating water pump
For charging a heating water buffer cylinder

Flexible hydraulic connection
And very high flow temperatures

Particularly economical generation of power and heat with CHP units
What could be more economical than using primary energy to generate two types of secondary energy at the same time? This is possible with cogeneration, where combined heat and power units (CHP units) supply electricity and heat at the same time.
