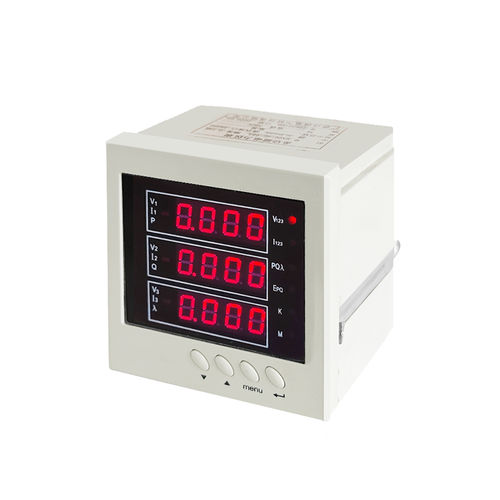

194E is extrem low cost solution for power line parameter monitor, It's equipped 3 line LED disply. Visual display of the modt commonly used data. It is widely used in metering of distribution feeders transformers generators capacitor banks and motors.

-. Class 0.5 for basic power parameter

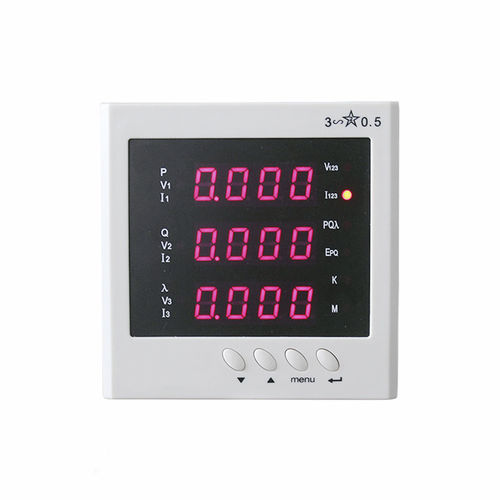

-. LED screen display 3 lines 4 digits
-. 96*96mm panel mounting size
-. ITF Technology: galvanic insulation protection inputs outputs

Power Supply:
AC / DC 80-265V, 45-65Hz
Burned < 10VA
Current Measurement :
.../ 1A or .../5 A
Burned < 0.1W
Voltage Measurement:
Direct measurement 18~277V ac (L-N)
PT secondary …/100Vac
Burned < 0.1W
Frequency Measurement:
45~65Hz
Resolution 0.01Hz
Accuracy:
U / I / P/ Q - 0.5%
Frequency - 0.1%
Active Energy - 1.0 class
Reactive Energy - 2.0 class
Communication Port:
RS485 (2/3 wires half duplex)
Modbus RTU mode
Pulse Outputs :
2 channel Coupler relay

Parameter Name	Parameter Value
Measured value	power, universal
Display	digital LED
Type	panel-mount
Other characteristics	4-20 mA programmable RS-485 with alarm analog output Modbus
