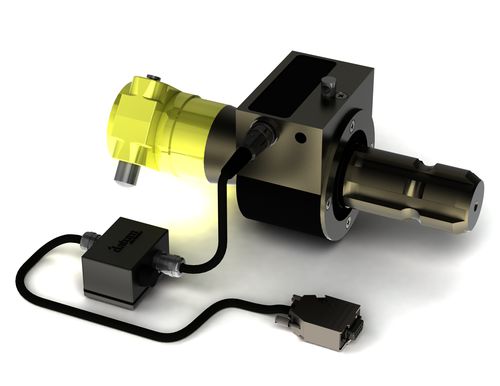

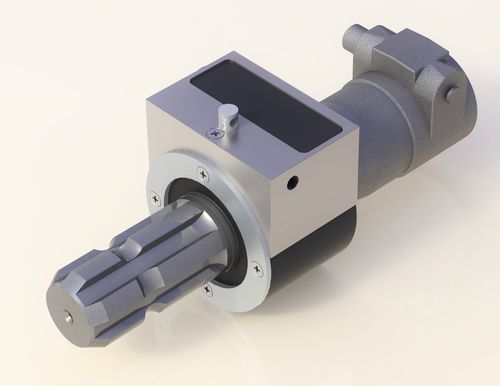

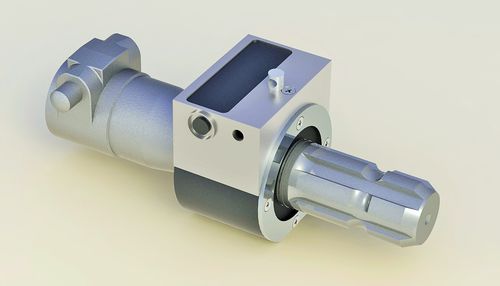

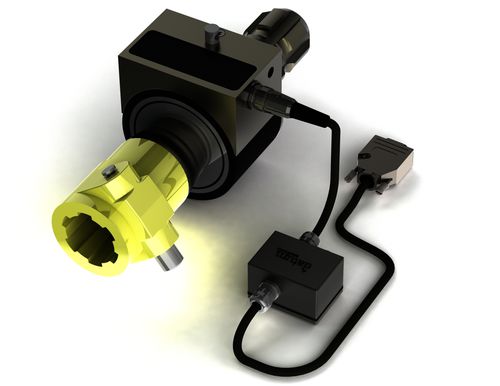

Datum Electronics Series 420 PTO (Power Take Off) Shaft Torque and Power Monitoring System will monitor and log the torque, shaft speed and transmitted power accurately when testing new systems driven from all standard PTO Shafts.

STANDARD CONFIGURATIONS INCLUDE:
Male / Female 1” 3/8 x 6 spline
Male / Female 1” 3/8 x 21 spline
Male / Female 1” 3/4 x 6 spline
Male / Female 1" 3/4 x 20 spline

OPERATING SPEED:
540 / 1,000 rpm as standard (up to 3,000rpm if required)

POWER RATING (MIN):
Standard 1"3/8 shaft configurations
Measures Power 135HP or 101kW at 540rpm
Measures Power 253HP or 188kW at 1000rpm
Standard 1"3/4 shaft configurations
Measures Power: 190HP or 141kW at 540rpm
Measures Power: 350HP or 261kW at 1000rpm

TORQUE RATING:
Measures Torque up to a maximum
of 1,800Nm on all standard 1"3/8 shafts
Measures Torque up to a maximum
of 2,500Nm on all standard 1"3/4 shafts

Parameter Name	Parameter Value
Type	power torque
Applications	PTO
