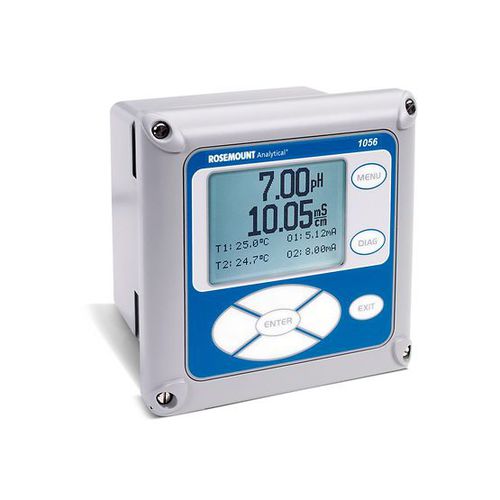

The 1056 dual-input transmitter offers single or dual sensor input with an unrestricted choice of dual measurements thus reducing the cost per loop and saving panel space. This multi-parameter instrument offers a wide range of measurement choices, including differential conductivity, dual oxygen and many other combinations supporting most industrial, commercial, and municipal applications. The modular design of the instrument allows signal input boards to be field replaced making configuration changes easy.

Specifications
Enclosure RatingPolycarbonate. Type 4X, IP65.
Certifications/ApprovalsFM/CSA/UL (see full specifications for complete list of certifications)
DimensionsOverall 155 x 155 x 131mm (6.10 x 6.10 x 5.15 in.). Cutout: 1/2 DIN 139mm x 139mm (5.45 x 5.45 in.)
Weight3 lbs/4 lbs (1.5 kg/2.0 kg)

Features
Faster installation using Quick Start programming, auto-recognition of sensor boards and modular design

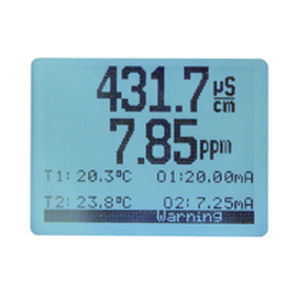

At a glance view of pertinent information provided by the large customizable display
Visibility of process parameters by utilizing HART or Profibus DP digital communications
Effortlessly connect with PLCs and DCS’ by choosing the HART or Profibus DP communication options

Parameter Name	Parameter Value
Type	power conductivity oxygen
Applications	measurement water
Interface	PROFIBUS
Other characteristics	digital multi-parameter IP65
